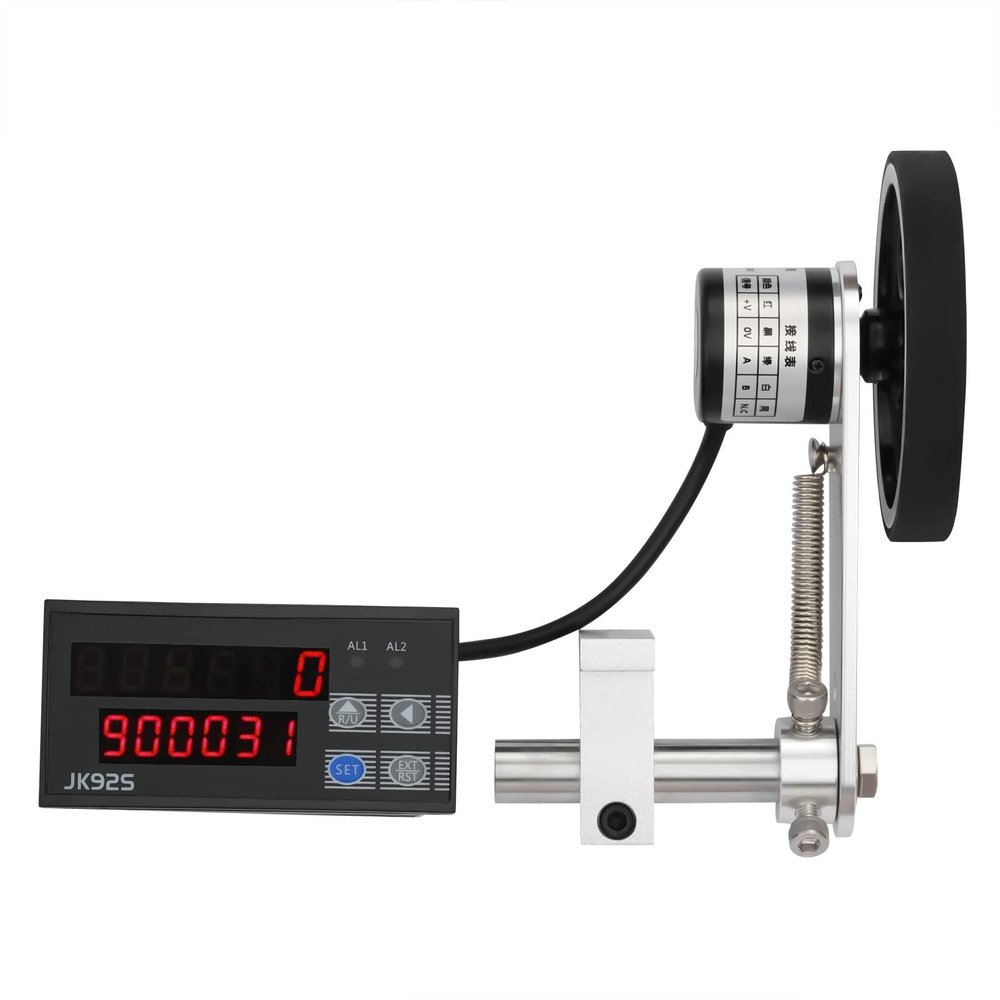

Meter Counter, Digital Length Meter Counter, Mechanical Length Counter, Single Measure Wheel Unit in Feet Meter, with Control Function 0-999999, with Multiple Modes, for Paper Making, Printing

Description

• Dual Relay Outputs This digital meter counter has dual relays to control two devices at the same time. It can also independently control alarms, motors, cutters, inverters, solenoid valves, and more to meet your needs.
• Multiple ModesYou can choose three different modes - regular, batch, and total meter counting - according to your usage needs, and the three modes can be switched freely. This meter counter is equipped with a clear digital display, wheel sensor, and complete function buttons for easy measurement. You can use it with confidence.
• Accurate Counting & HD DisplayThe digital meter counter can be accurate to 0.01mm with high counting accuracy for more accurate length counting. This digital meter counter is equipped with a high-definition digital display, and the measured data can be obtained directly, without the need for other operations.
• Power-off Memory & Alarm FunctionThis meter counter has a power-off memory function, which can retain the measurement data even if there is a sudden power failure during work. This meter counter can be connected to an alarm. Once the preset value has been reached, the alarm will automatically alarm and can be automatically reset for ease of work.
• Low Noise & Large Measuring RangeThe meter wheel adopts a single-wheel sensor and runs smoothly. And the wheels are made of rubber, and the surface is smooth without much noise when running. The counting range of this digital meter counter is 0-999999m, which can be used for measuring large-scale products in various factories.

3 Counting Modes

1.Regular Meter Counting: The top row shows the actual meter count and the bottom row shows the preset count. You can choose between automatic or manual reset and cycle counting when the count reaches the preset value and the relay outputs.
2.Total Meter Counting: The upper row shows the current value, and the lower row shows the totalized value. When the count reaches the preset value, the upper row can be reset automatically or manually, and the lower row is always added up to the total.
3.Batch Counting: The upper row shows the current count, and the lower row shows the number of batches. When the upper row count reaches the preset value, you can choose between automatic or manual reset and the lower row batch count will be added by 1.

Specification
Voltage: 110V
Color: Black
Measurement Unit: Feet, Inches, Meters, Yards
Material: Plastic, Aluminium Alloy, Rubber
Plug Type: US Plug
Measuring Range: 0-999999m/3280837ft
Gross Weight: 1.2kg/2.65lbs
Product Size: 9.6*7.2*4.8cm/3.78*2.83*1.89in
Package Size: 19.5*10.5*13.5cm/7.68*4.13*5.32inch

Package Included
1 x Meter Counter
1 x Wheel Sensor
1 x Aluminum Alloy Bracket
1 x Encoder
All Accessories for Installation

Notes
1.The default unit for this is meters. If you want to change the unit, you need to reset the Override yourself. If you don't know the method, please feel free to contact the seller.
2.Please note that the alarm (not included) needs to be purchased by yourself.
