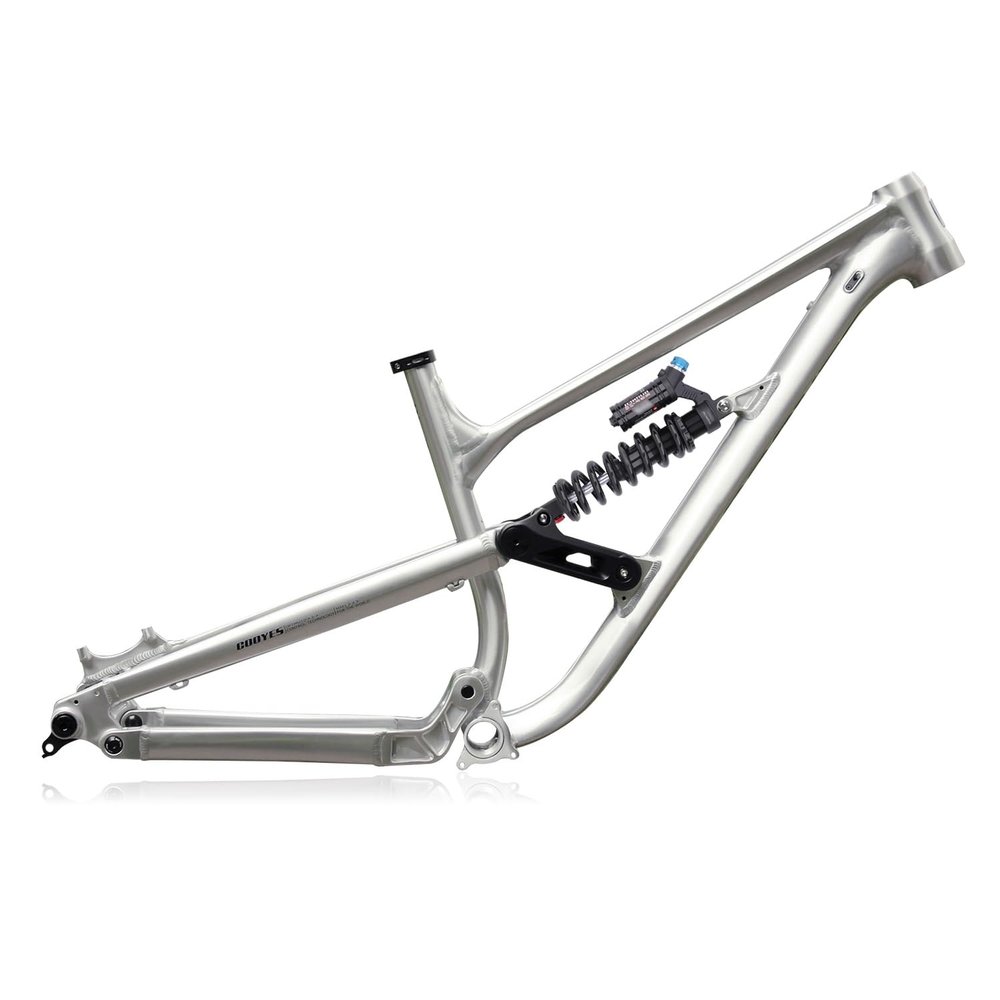

BSFHQS 27.5/29ER DH/AM/FR/Enduro Mountain Bike Frame 15/16.5/18" Full Suspension Frame 170-190mm Travel Disc Brake Boost Frame 148mm Thru Axle with 240mm Rear Shock Absorber(Silver,27.5 * 15in)

Description

• Mountain Bike Soft Tail Frame: Aluminium alloy full suspension frame 27.5er 29er enduro mountain bike frame 15"/16.5''/18'',travel 170-190mm.
• Specification: For 44*55mm headset, BSA73mm, seat post 30.9mm, seatpost clamp 34.9mm. A-pillar disc brake PM 75mm, 12*148mm boost thru axle, max for 27.5*2.7''/29*2.5" tires.
• Rear Shock Absorber: 240mm Oil Spring Shock Absorber. Eye to Eye:240mm 76mm Travel (9.442.99in). Damper shaftHard chromed shock 12 mm ( 0.47 inch ) shaft, Spring: Coil Spring, Intended use: AM FR DH. Weight: 1056g=2.32lbs, Travel: 692mm, Spring Rate: 550lbs. Adjustments: Rebound / Compression / Preload / Adjust High Pressure/Big impact.
• Full internal routing frame: thickened rear fork, strength and toughness,fit for enduro/Downhill/AM/Forest Road.
• Package: The frame weight about 3850gpackage includes frame240mm Oil Spring Shock Absorber, thru axle rod, headset, seatpost clamp, tail hook, Cable Clip.

15/16.5/18inch Full suspension mountain bike frame, 27.5/29ER Soft tail Disc brake bike frame, 12*148mm BOOST thru-axle frame, Perfect gift for bike lovers, can be assembled with your friends.

Product name: Aluminum Alloy mountain Bikes frame
Frame higth15",16.5",18"
For wheel27.5''/29" wheels
Maximum tire width: 29*2.5" (27.5*2.7")
Level: DH/AM

Material: Aluminum Alloy
Weight: about 3850g
Color: Black, Green, Silver, White

Specifications:
Headset: 44*55mm
Seatpost: 30.9mm
Seatpost Clamp: 34.9mm
Rear wheel travel: 170-190mm
bike forks travel: 170mmSupports Straight Tube or Tapered Tube forks
Boost thru-axle: 12*148mm ( 142mm thru-axle can be installed with adapter )
Shock absorber: Supports 230*65mm/240*76mm Shock absorber
Bushing: 22-22mm
Chainring: 30/32T(Max 32T)
Bottom Brackets: BSA BB73mm
Brake: A-pillar disc brake, PM 75mm, Directly mounted with 180mm disc brake rotor, 203mm requires an adapter seat.
Cable : external routing ; internal routingInternal and external routing are available

Rear Shock Absorber:
240mm Oil Spring Shock Absorber
Eye to Eye: 240mm 76mm Travel (9.442.99in)
Damper shaftHard chromed shock 12 mm ( 0.47 inch ) shaft
Spring: Coil Spring
Intended use: AM FR DH
Travel: 692mm
Spring Rate: 550lbs
Material: 7075 Aluminum Alloy
Weight: 1056g=2.32lbs
Adjustments: Rebound / Compression / Preload / Adjust High Pressure/Big impact

Package:
Frame + 240mm Oil Spring Shock Absorber + Rear Thru axle lever + headset + Seatpost Clamp + Tail hook + Cable Clip

NOTES: Please check if the bike frame size is correct before purchasing.
Service: If you have any product and service questions, please contact us and we will respond to you within 24 hours.
