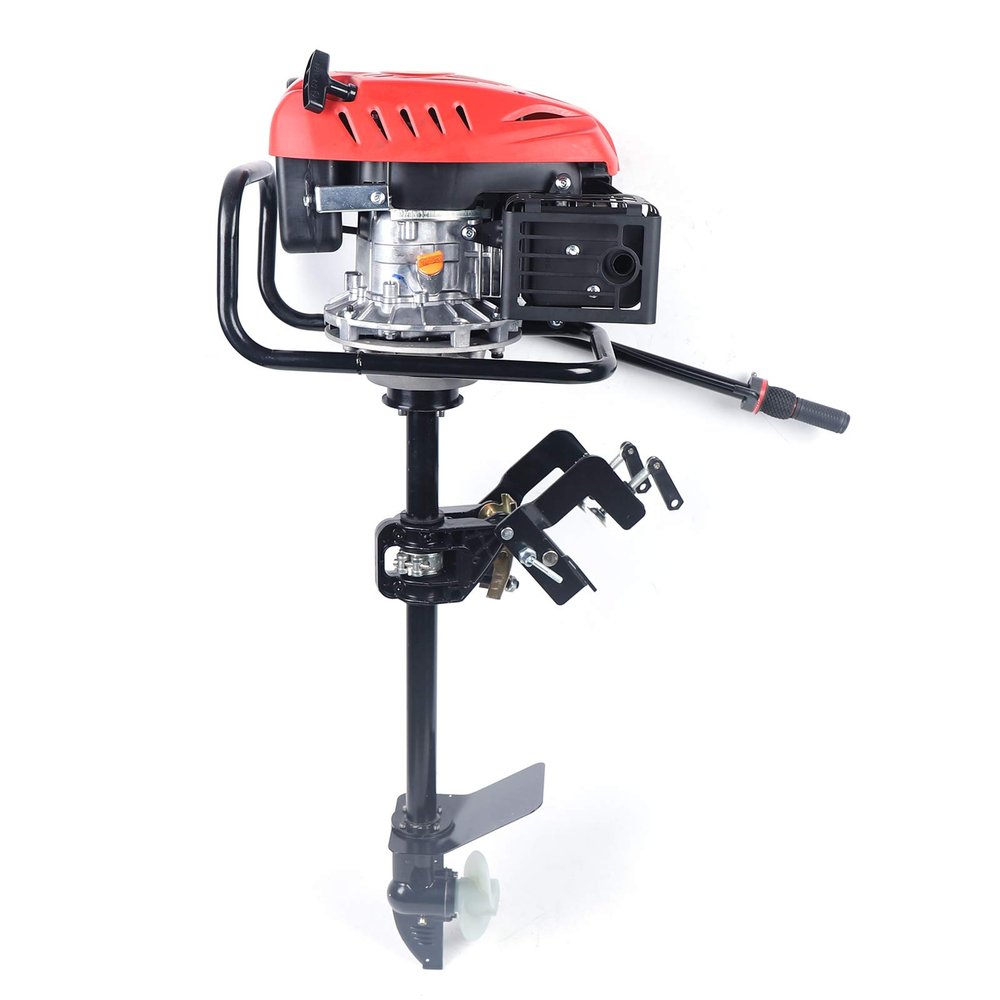

BAIODNB 4 Stroke 3.2KW Outboard Motor Engine, Heavy Duty Fishing Boat Engine with OHV, Single Cylinder Horizontal Gasoline Boat Engine Mud Motor for Inflatable Boats, Rubber Boats, Fishing Boats

Description

• Premium Material: It uses high-quality aluminum materials with a plastic painting process, and can withstand freshwater and saltwater environments. Moreover, It can run for about 1 hour when the fuel tank is full. The maximum speed is 15 kilometers per hour, and the minimum speed is 8 kilometers.
• High Efficiency: With a 4-stroke engine, OHV design, 3.2KW strong power output, and 3600r/min high speed, this machine has a strong torque output (9.0N.m/2) and is more energy-saving and durable. It can run efficiently on most ships, providing you with a fabulous riding experience.
• Stepless Speed Regulation: The step-less speed regulation, without the abrupt sense of shifting gears, allows for a smooth and easily controlled ride.
• Fast Ignition: Using a titanium alloy spark plug and pull start mode, this engine features fast ignition, energy and fuel saving, and power improvement.The muffler design can reduce noise, providing you with a comfortable user experience.
• Great Heat Dissipation: With many heat dissipation holes on the engine and a forced air cooling system, this engine has a great heat dissipation effect and long service life. With the switch button, pull start mode, and 360 rotatable design, you can easily operate this engine.

Specifications

Material: Aluminum
Spark Plug Material: Titanium Alloy
Surface Treatment: Plastic Painting
Recommended Uses for Product: For Fishing Boats
Gasoline Engine Type: Single Cylinder Horizontal, Four-stroke, OHV
Recommended Fuel: 92# or Above Gasoline
Recommended Lubricant: 4-stroke Lubricant Oil
Hypoid Gear Oil: SAE90
Starting Mode: Pull Start
Transmission Mode: Spline Transmission
Cooling System: Forced Air Cooling
Ignition System: Capacitance Discharge Type
Power Output Mode: Vertical Shaft Output
Power: 3.2KW
Reduction Ratio: 22:15
Displacement: 170cc
Exhaust Volume: 173.3ml/5.86oz
Bore*Stroke: 70*45mm/2.75*1.77inch
Theoretical Power: 3.2kw/3600r/min
Recommended Power: 2.4kw/3000r/min
Torque: 9.0N.m/2, 500r/min
Fuel Consumption: 395g/kw.h
Spark Plug Gap: 0.7-0.8mm/0.027-0.03inch
Carburetor Idle Speed: 1900100r/min
Valve Clearance (Cold Engine): Intake: 0.150.02mm; Exhaust: 0.200.02mm
Suspension Height: Suspension Point to Propeller 60-70-80cm/23.6-27.56-31.5inch
Oil Tank Capacity: About 1.2L/40.57oz
Applicable Temperature: 80-110/176-230
Applicable Boat Length: 3-7m/9.8-22.9ft
Flat Water Load-bearing Capacity: 1T/2204lbs
Heavy Current Load-bearing Capacity: 750kg/1653lbs
Max. Speed: 15km/h
Min. Speed: 8km/h
Product Size: 39.5*34.8*115cm/15.55*13.7*45.27inch
Package Size: 116*38*48cm/45.67*14.96*18.89inch
Net Weight: 26kg/57.3lbs
Gross Weight: 30kg/66.13lbs
Package Included
1* Outboard Engine
1* Throttle Main Line
1Set* Tools
1* Manual
Notes
1.Please do not start the engine on the shore or use it when it stops coming out of the water.
