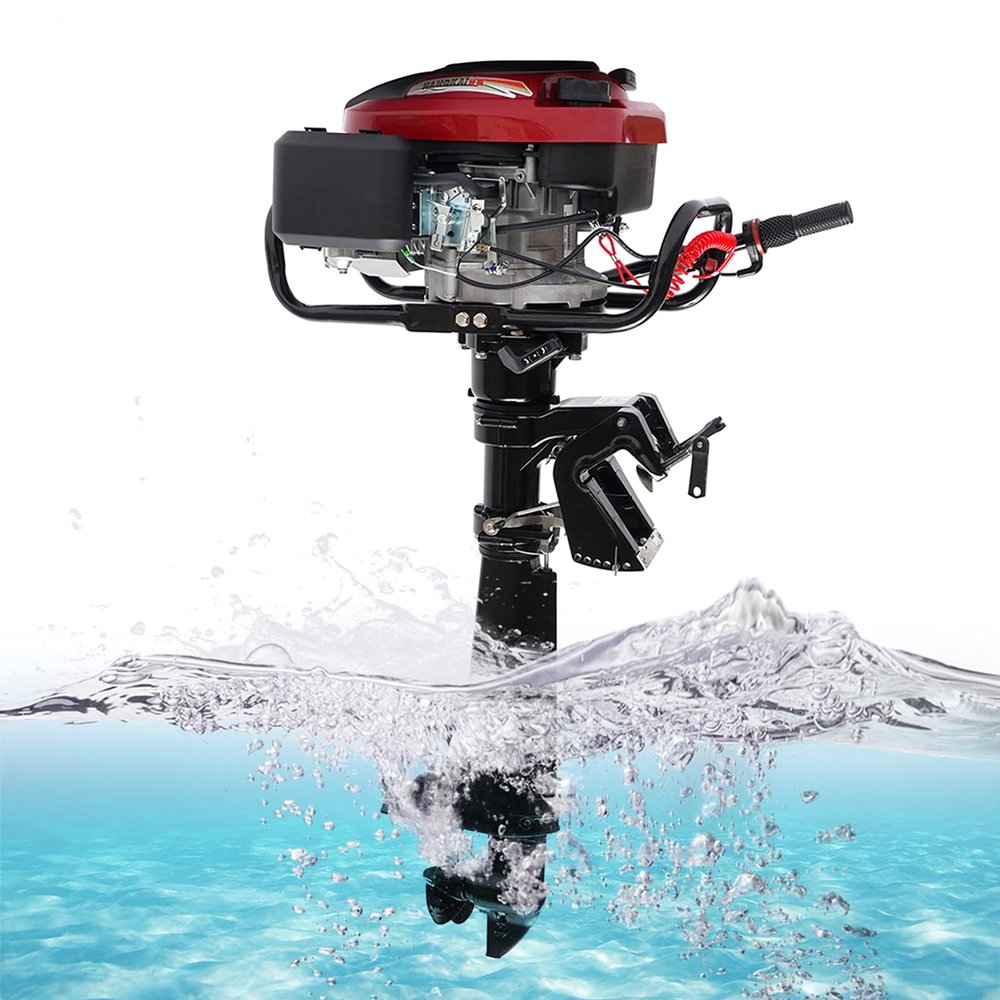

7HP Outboard Motor Boat Engine 4 Stroke Outboard Motor Heavy Duty Outboard Motor Fishing Boat Engine with Water Cooling System 5100W 196CC

Description

• 4 STROKE 7 HP OUTBOARD MOTOR BOAT ENGINE4 Stroke 7HP power, Water cooling technology to improve the reliability of the whole machine. Superior engine water cooling system for improved engine performance.
• HIGH QUALITY & DURABLEMade of special high-strength aluminum alloy material; universal motors, high performance, reliable quality and Economical and compact structure. Durable, lightweight and anti-corrosive construction. And maneuverable and safe twist grip throttle control.
• WIDE APPLICATIONIt can be marched with inflatable boats, rubber boats or fishing boats.(.Necessary: you have to prepare a boat-motor stand or Hanging board on your boat)
• WARM TIPSPlease add gear oil to the gears before use the motor and replace gear oil after the run-in period10hours. (if you do not know how to handle this, please contact with us ); All the gasoline machines are noisy, currently we did not test the decibel , but the noise is the same as the motorcycle, so it is a normal phenomenon. We can only provide CE certification, there is no other certification can be provided,thanks for your understanding.
• ABOUT US We have our own overseas warehouse and a professional Customer Service Team to reply you within 24 hours. If you have any Questions, We promise you that we will do our ultmost to solve it for you firstly.

Description
Type: 4 stroke 7 horsepower
Capacity: 196CC
Transmission ratio: 2.08 (27:13)
The number of cylinders: 1
Maximum speed: 4500-6000
Maximum power: 5.1 kW /7 HP
Shift position: clutch control
Package volume: 120x60x42.5 cm
Ignition system: TCI
Cooling system: air cooling
Starting method: hand start
Refueling: No. 93 gasoline
Propeller size: 3-7 1/2''x5''
Gear position: F-N-R
Control system: Tiller control
N.W./G.W.: 26.7/31.7kgs(58.86/69.88lbs)
Recommended Lubricant: 4 stroke lubricant oil
Trim and tilt system: Mannual tilt
Standard fuel tank capacity: 1.4L/within
long shaft:50.8CM/20''
There are neutral gears, forward gears, reverse gears
Can not install external fuel tank

It is a manually activated outboard

Note
Don't do the following will avoid cylinder Scoring:
1.start the motor on bank
2.use the motor when it stop coming out of water
Even if you want test the motor, it should be done in the river!
When there is no water coming out from the motor,please stop using it immediately ,then check the impeller of Water pump or check if the water outlet has been blocked.
Must read before use
Four stroke 7 hp
Firstly, Fill the gear oil (open gear box lid and fill it).
Secondly, Fill NO. 92 petrol, lightly press oil pump 6-10 times
Thirdly, Fill engine oil don't exceed the head of the pattern
Forthly, Pull the gear to netural gear, and plug the brake line in, hang the other side of the brake line on your wrist at the same time
Then, turn the accelerator gets up to 50% and rapidly pull the starter line
After the motor start , please turn the gear to minimum before put another gear
Otherwise, the gearwheel will be broken if you put high gear
