6HP 4 Stroke Outboard Motor Gas Boat Engine 170cc Fishing Boat Gasoline Boat Engine Tiller Control Start Heavy Duty Shaft Boat Engine Air-cooled Outboard Boat Motors

Description

• Durable and Sturdy: This boat engine mud motor is mainly made of high-quality aluminum and adopts a spray molding process, making it highly resistant to impact, friction, and corrosion.
• High Performance: The superior outboard boat motors wind cooling system and three-blade propellers can help reduce drag and balance thrust, overcome huge water resistance, and improve driving speed, achieving optimal performance and ensuring high efficiency. This outboard engine has a fuel tank capacity of 0.95 gal and can work continuously for over 3 hours, meeting the needs of long-distance travel and work.
• Flexible Steering: This mud motor supports 180-degree flexible steering, allowing you to easily handle various curves.
• Excellent Heat Dissipation: The heat dissipation holes and air cooling system of the inflatable boat with motor provide good ventilation to prevent engine overheating and improve its stability and reliability.
• Good Noise Abatement: Compared with a two-stroke, this four-stroke outboard boat motors has a better noise abatement effect. It can provide a quieter working environment for you.

Description

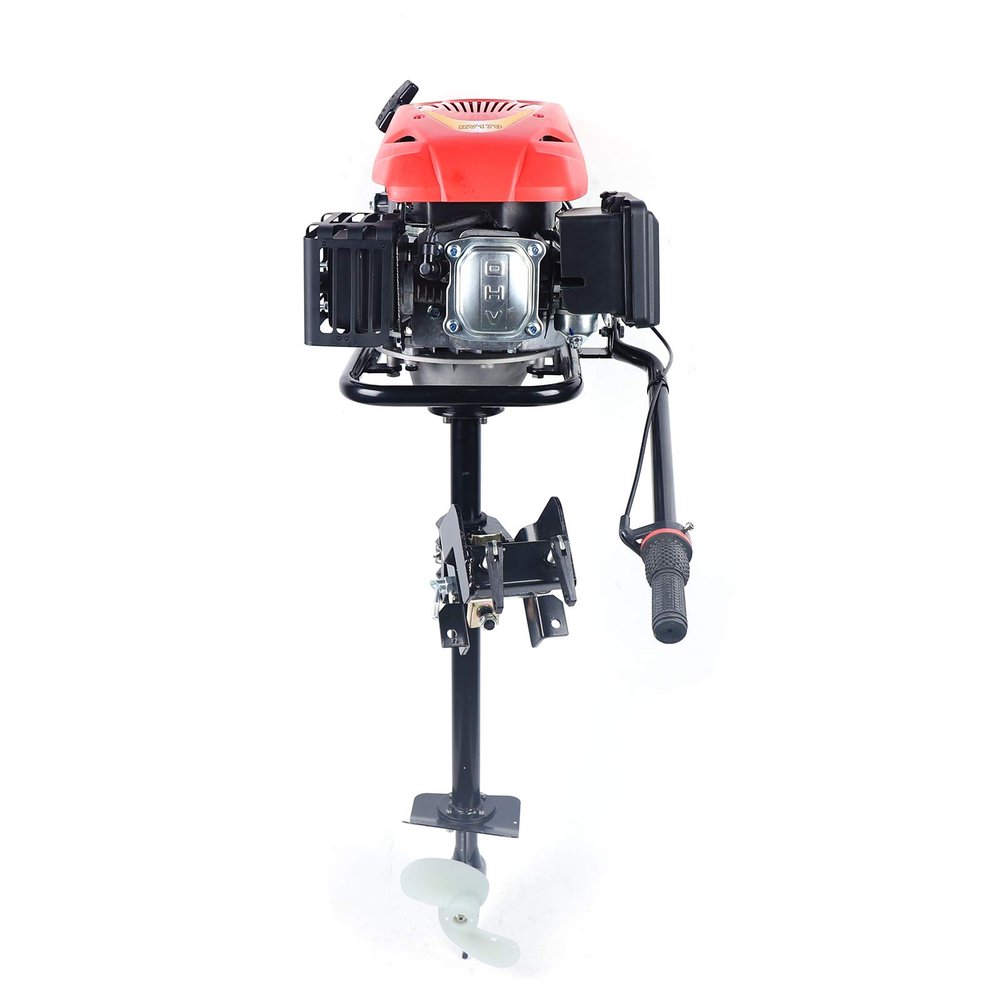

With its strong load-bearing capacity and high efficiency, this 4-stroke outboard engine is a great machine for a variety of applications. The speed can be step-less regulated and the machine can be 360 rotated, allowing for more flexible steering.

Specifications
Model: RV170
Color: Black, Red
Material: Aluminum
Spark Plug Material: Titanium Alloy
Surface Treatment: Plastic Painting
Recommended Uses for Product: For Fishing Boats
Gasoline Engine Type: Single Cylinder Horizontal, Four-stroke, OHV
Recommended Fuel: 92# or Above Gasoline
Recommended Lubricant: 4-stroke Lubricant Oil
Hypoid Gear Oil: SAE90
Starting Mode: Pull Start
Transmission Mode: Spline Transmission
Cooling System: Forced Air Cooling
Ignition System: Capacitance Discharge Type
Power Output Mode: Vertical Shaft Output
Power: 6Hp
Reduction Ratio: 22:15
Displacement: 170cc
Exhaust Volume: 173.3ml/5.86oz
Bore*Stroke: 70*45mm/2.75*1.77inch
Theoretical Power: 3.2kw/3600r/min
Recommended Power: 2.4kw/3000r/min
Torque: 9.0N.m/2, 500r/min
Fuel Consumption: 395g/kw.h
Spark Plug Gap: 0.7-0.8mm/0.027-0.03inch
Carburetor Idle Speed: 1900100r/min
Valve Clearance (Cold Engine): Intake: 0.150.02mm; Exhaust: 0.200.02mm
Suspension Height: Suspension Point to Propeller 60-70-80cm/23.6-27.56-31.5inch
Oil Tank Capacity: About 1.2L/40.57oz
Applicable Temperature: 80-110/176-230
Applicable Boat Length: 3-7m/9.8-22.9ft
Flat Water Load-bearing Capacity: 1T/2204lbs
Heavy Current Load-bearing Capacity: 750kg/1653lbs
Max. Speed: 15km/h
Min. Speed: 8km/h
Product Size: 39.5*34.8*115cm/15.55*13.7*45.27inch
Package Size: 116*38*48cm/45.67*14.96*18.89inch
Net Weight: 26kg/57.3lbs
