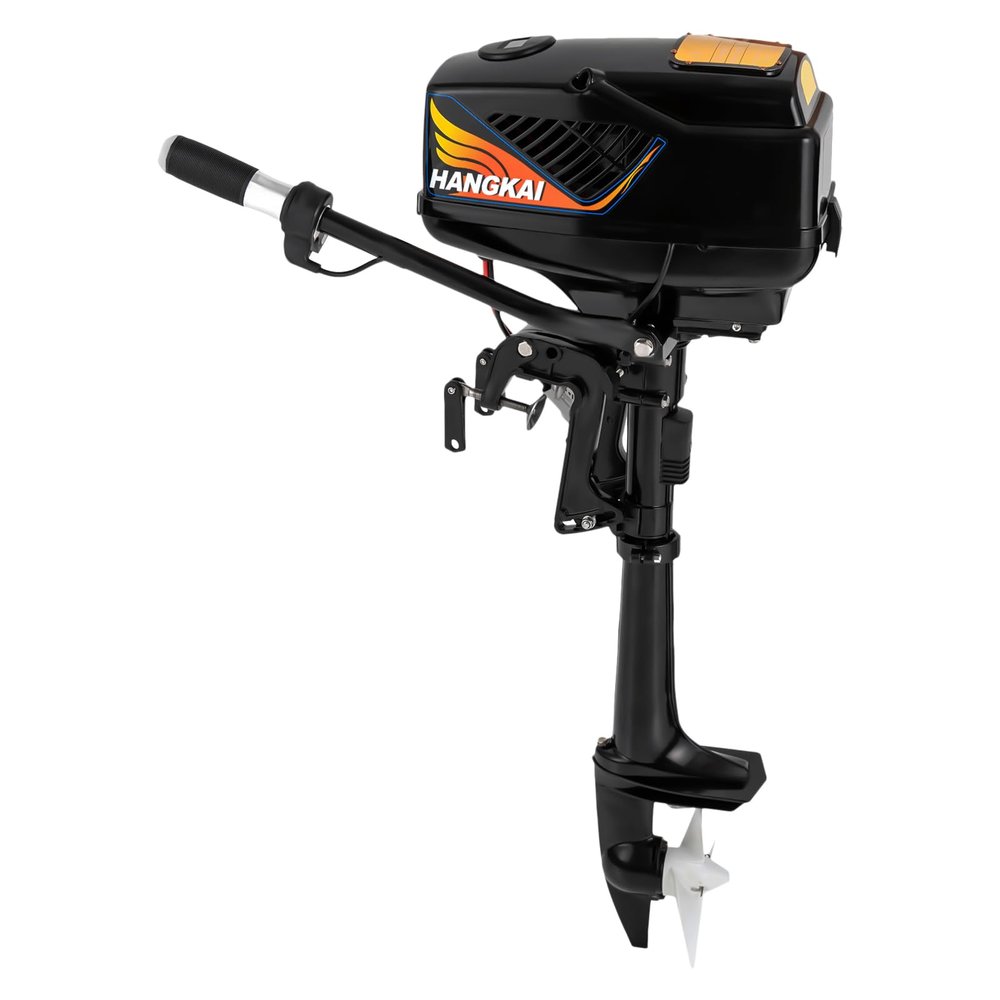

5Hp 48V Hangkai Electric Outboard Trolling Motor Boat Short Shaft Engine 1200W Build To Last High Efficiency Energy Saving Powerful Thrust Key Switch Anti Winding Propeller Ergonomic Handle

Description

• Build to Last: The exquisite painting process and aluminum alloy improve the corrosion resistance and wear resistance of the product(able to withstand fresh and saltwater environments), which makes it can serve you for a long time.
• Easy to Install: The simple structure and lightweight (26.45 lbs) allows you to easily install without any tools.
• Strong Power: 1200W pure copper brushless motor provides strong power to it.
• Environmentally Friendly: The electrically powered outboard eliminates exhaust pollution from gasoline. And the pure copper brushless motor produces less wear and noise, creating a smoother user experience for you.
• Flexible Control: Having step-less speed change and constant speed function in reverse and forward gears allows you to enjoy different cruising experiences. The 180rotatable stand and omnidirectional swivel joystick allow a more flexible operation to meet different needs.

Common Faults and Troubleshooting

1. If the starting handle is found to be powered off during operation, please check whether the positive and negative poles of the battery and the whole set of power cables are connected properly.

2. Always check whether the controller screws are loose.

3. The gearbox should be replaced with gear oil for three months.

Specification

Model: DD-48V-1200W

Power: 1200W

Rated Voltage: 48V

Rated Current: 25A

Rated Speed: 3000rpm

No-load Speed: 4000 rpm

Process: Spray Painting

Gear Ratio: 2.08(27:13)

Control System: Tiller Control

Max. Speed: 15km/h/9.3mph

Motor Type: Pure Copper Brushless Motor

Reverse Gear: Yes

Thrust: 1500kg/3307lbs, Speed 5-8 km/hour ( According to the Environment, Water, Boat load will be Different )

Recommended Battery: 1*48V/4*12V (40Ah Capacity can be Used for About 2 Hours, the Longer the Endurance, the Slower the Speed)

Propeller Model(in): 7-1/4x5-A(The size of the propeller is 7.25 inches/18.4cm, and the propelling distance of the propeller is 5 inches/12.7cm after one revolution)

Length of Suitable Ships: Less than 5m/16.4ft

Package Size: 95*42*29cm/37.4*16.53*11.41in

Product Size: 92*36.5*22cm/36.22*14.37*8.66in

Gross Weight: 14kg/30.86lbs

Net Weight: 12kg/26.45lbs

Tail Plate Height: 42cm/16.53in(Short Shaft)

Stern Plate Adapter Height: 40cm/15.74in

Package Included

1* Electric Outboard Motor

1* Propeller

1*English User Manual

2*Keys

All Accessories Needed for Installation

Notes

1. Before installing and using the electric outboard motor, please read the entire manual carefully as this will help you understand the electric outboard motor and its operation.

2. Please wash the propeller with clean water after sailing in sea water or turbid water.

3. Please store the electric outboard engine in a dry and ventilated place away from direct sunlight.
