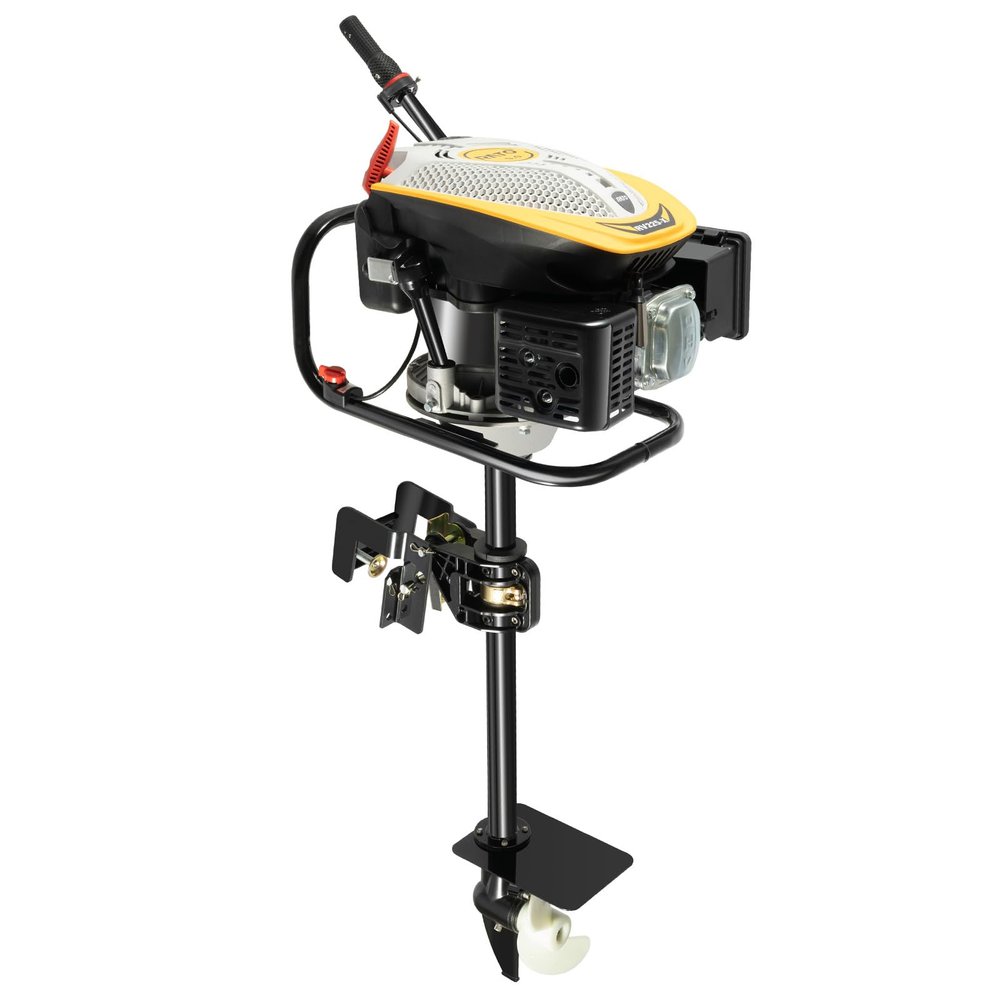

4-Stroke 9 HP Outboard Motor, 225CC Marine OHV Engine with Air Cooling TCI System Heavy Duty Gasoline Outboard Motor for Fishing, Aquaculture and Outdoor Adventures

Description

• 4-Stroke 9 HP OHV EngineThe with 3800r/min can provide a speed of 15km/h to give you a comfortable and labor-saving sailing experience. In addition, the two-bladed nylon propeller and streamlined design reduce water resistance, prevent water plant entanglement, and provide more power during operation.
• Stable EngineThe dense heat dissipation holes on the casing help the engine dissipate heat quickly and promptly. Moreover, the air filter helps to filter impurities in the air and reduce the wear and tear of dust and sand on the engine, which can achieve stable machine operation.
• Low Fuel ConsumptionIt uses an advanced TCI ignition system and a high-quality carburetor that allow the fuel to burn well and consume only 0.4 gal/hour, which not only saves fuel but also reduces costs.
• Safe & ReassuringThe forced air-cooling system helps cool the engine for longer life. Suspension tilt adjustment pins can be used to adjust the boat's sailing attitude at any time to keep it sailing smoothly. The anti-swirl plate reduces swirl, allowing you to sail more safely. The one-button flameout switch can help you to turn it off quickly. It also automatically switches off the flame when the machine overheats, making it safer for you to use.
• Easy to OperateIt adopts a clutch-type gear without shifting gears, and the manual start allows you to operate more smoothly. By controlling the throttle lever, you can freely control the navigation direction and achieve infinite speed change, or you can cruise at a constant speed to enjoy different cruising experiences according to your needs.
• ApplicationThis outboard engine is suitable for inflatable boats, iron boats, plastic boats, fiberglass boats, wooden boats, etc. with a stern plate height of 11.81-19.69 inches. It is widely used in fields such as fisheries, aquaculture, and outdoor exploration.

Description
This outboard motor is made of aluminum alloy material, which is a good choice for you to enjoy your cruise. All you need to do is install it in the stern of your boat, and you can enjoy a fast and easy-to-operate water journey!

Details
1. Engine Oil Filling Pipe: The smooth engine oil filling pipe (5.51inch) makes it easier for you to fill the oil without easily spilling.
2. Stern Plate Clamping Bolt: It can firmly fix the outboard motor on your ship and is not easy to slide.
3. Ergonomic Handle: The rubberized throttle control handle increases friction and has a comfortable grip, making it easier to use.
4. Silencer: It can effectively alleviate the noise generated during the operation process, control the noise within an acceptable range, and provide a comfortable working environment.

Specification
Material: Aluminum Alloy, Nylon, Rubber
Engine Type: 4-stroke, OHV, 9HP
Displacement: 225CC
Compression Ratio: 8.4:1
Cylinder: 1
Max.Output: 4.3kw
Rotation: 3800r/min
Max. Speed: 15km/h/9.32miles/h
Idle Speed: 1800+150rpm
Net Torque: 12.5n.m / 7.7 Lbf.ft, 2500rpm
Gear: Clutch (No Shift Required)
Ignition System: TCI
Cooling System: Forced Air-cooling
Starting System: Manual Recoil
Power Transmission Mode: Gear Transmission Mode
Recommended Fuel: Above 92# Unleaded Gasoline
Engine Oil: SAE10W-30 Four-stroke Oil (Approximately 0.6L Added to the Ccrankcase, Between the Upper and Lower Lines of the Dipstick)
Trim and Tilt System: Manual Tilt
Fuel Consumption: 1.5L/0.4Gal/H
Fuel Tank Capacity: 1-1.5L/0.26-0.4Gal
Gear Oil Capacity: 0.1L/0.03Gal
Bore Stroke: 7*5.8cm/2.76*2.28inch
Standard Shaft Length: 70cm/27.56inch
Adaptive Transom Plate Height: 30-50cm/11.81-19.69inch
Propeller Diameter: 19cm/7.48inch
Joystick Length: 59cm/23.22inch
Oil Filling Pipe Length: 14cm/5.51inch
Product Lower Part Length: 76cm/30inch
Product Total Length: 110cm/43.31inch
Net Weight: 25.6kg/56.44lbs
Engine Size: 46*37*30cm/18.11*14.57*11.81inch
