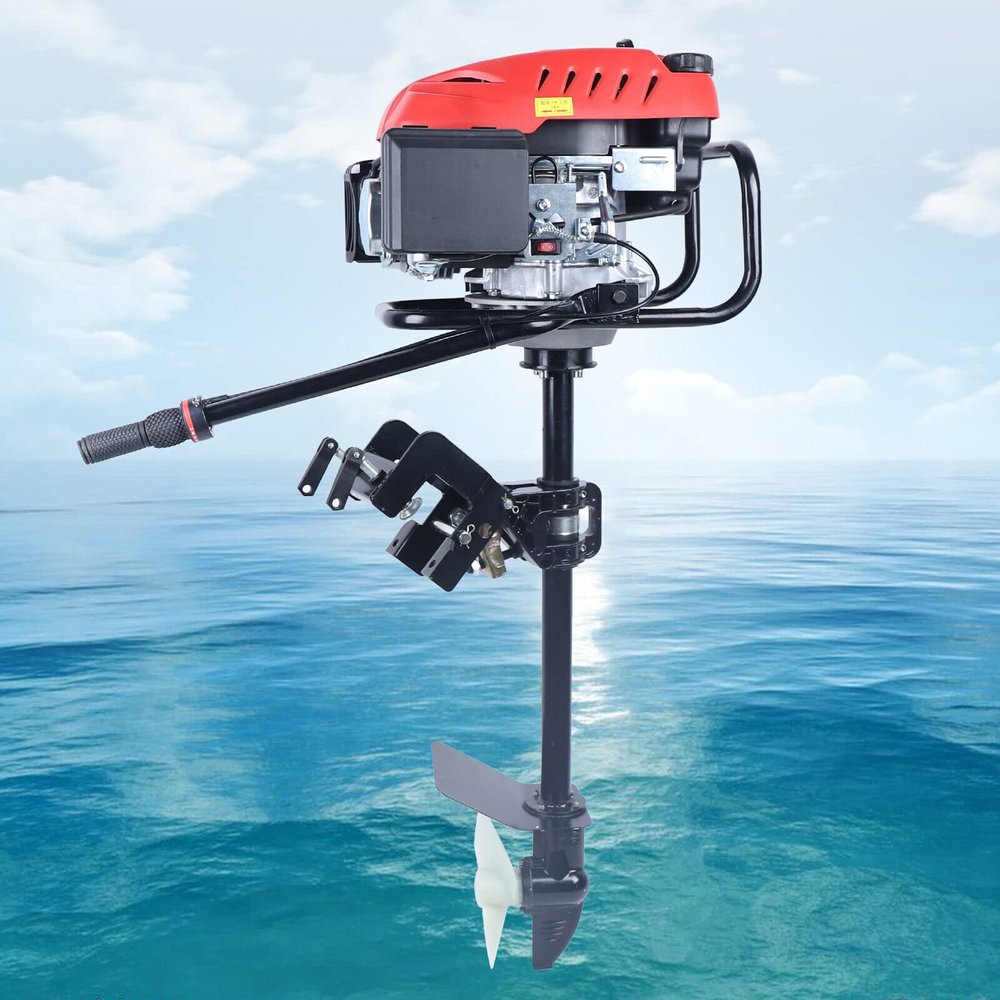

4-stroke 6HP outboard motor fishing boat engine with air cooling system 173CC with excellent corrosion protection

Description

• 4-Stroke 6HP outboard motor: Air cooling technology to improve the reliability of the whole machine. With 360 degree steering rotation function, no need to shift gears to reverse. Easy to use, easy to operate, safer, more reliable, more corrosion resistant, more beautiful, more durable, more energy efficient, more environmentally friendly.
• High performance. Activate gear protection/clutch function to inhibit propeller rotation during idling. Hood with push-button latch is easy to pull off for immediate access to the motor. Compact design, large fuel tank capacity, fuel saving, strong horsepower, superior performance, environmental friendly and durable.
• Safer and 3 years warranty. More reliable, more corrosion resistant, more beautiful, more durable, more energy efficient, more environmentally friendly Luxurious shape, better performance, cheap, curable, easy to maintain, very useful for daily use.
• Perfect design. Light weight, easy to carry, unique appearance, large capacity of fuel tank. Environmental protection. Clean and pure gasoline makes the outboard engine's emission index reach CE certification, contributing to the promotion of green movement.
• NOTE:We are committed to provide excellent customer service,If you have any questions,please contact us. We will try our best to solve your problem.

Product parameters:
Transmission mode; spline transmission, hard shaft, spiral bevel gear Installation method; fixed support frame combination or clamping bracket Backward way; 360 rotation
Whole propeller configuration; counterclockwise: three-blade or two-blade anti-wrapping
Starting mode; pull start
Exhaust muffler method; muffler is discharged directly outside the machine
Recommended fuel; 92# or above gasoline
Recommended lubricant; Engine: SAE10W_30 Gearbox: Hypoid gear oil SAE90 Suspension height; suspension point to propeller 60-70-80cm
Reduction ratio; 22:15
Dimensions; 395x348x1150 mm
Machine weight (kg) 26
Gasoline engine technical parameters:
Model RV170
Gasoline engine type; horizontal bar horizontal, four-stroke, overhead valve (OHV)
Exhaust volume; 173.3 (ml)
Borestroke; 7045 (MM)
Theoretical power; 3.2KW/3600r/min
Recommended power; 2.4kw/3000r/min
Torque; 9.0Nm/2, 500r/min
Fuel consumption; 395g/kw.h
Cooling system; forced air cooling
Ignition system; capacitor discharge type
Power output mode; vertical axis output
Spark plug gap; 0.7-0.8mm
Carburetor idle speed; 1900100r/min
Valve clearance (cold engine); intake: 0.150.02mm
Exhaust: 0.200.02mm
packing list:
Outboard engine + tools + throttle main line
