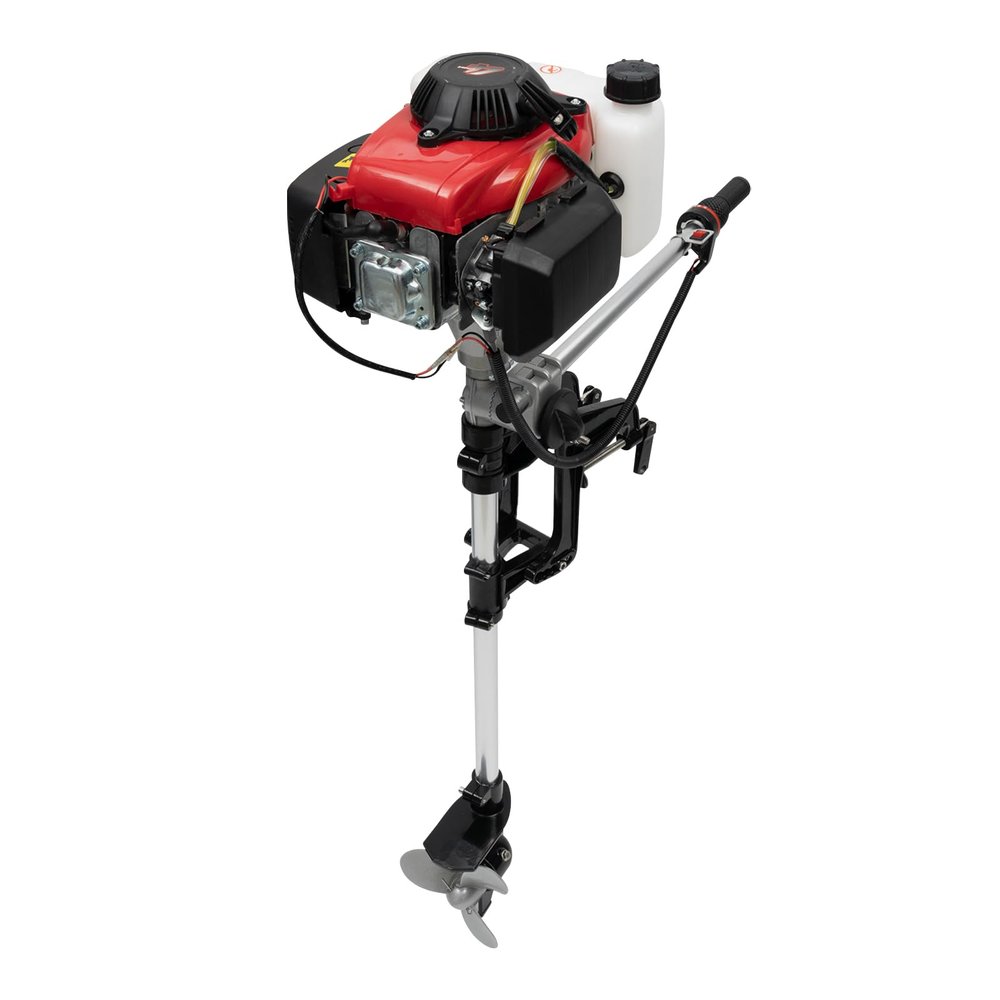

4-Stroke 4HP Outboard Boat Engine Motor 53.2CC 144F Air Cooling Marine Boat Motor Handle Steering Outboard Motor suitable for small boats of 7.5-16.4ft

Description

• 4 Stroke Outboard Motor: Do you like fishing on the river? Do you want to go boating with your family? But are you worried about the manual boating is too tired? With our fishing boat engine, you don't have to worry about this problem. This engine has sufficient power and can drive the boat at a fast speed. The four-stroke 4 HP fishing boat engine is suitable for all kinds of small boats of 7.5-16.4ft, such as rubber boats, fishing boats, wooden boats, etc
• Reliable and Safe: Air Cooling Marine Boat Motor uses 4-stroke power and air-cooling technology to improve the reliability and safety of the entire machine. It even allows for smooth and safe steering
• Speed Adjustable: There is a speed adjustment handle on this engine's control lever. The speed can be controlled by rotating the handle
• Powerful Engine: The engine is a 4-stroke 4 HP engine, so its power is very strong. Its speed can reach 15km/h. So the superpower engine makes it very time-saving and energy-saving. You can travel quickly through the river with it
• Convenient Control Lever: This engine has a lever to control the direction within 360 and a handle on the lever to control the speed. It is convenient to control the running speed by adjusting the handle as well as controlling the running direction by adjusting the lever

Specification
Bracket: Material: Aluminium Rod, Plastisol Propeller
Color: Black and Silver
Drive Rod Length: 56cm/22.05inch
Small Bracket Size: 19*8cm/7.48*3.15inch
Control Lever Length: 53cm/20.87inch
Package Size: 94*19*16cm/37.01*7.48*6.30inch
Net Weight: 4.7kg/10.36lbs
Gross Weight: 4.95kg/10.91lbs
Engine: Color: Orange, Black, Silver
Size: 26*22.5*29cm/10.24*8.86*11.42inch
Engine Model: Four-stroke 144F
Displacement: 53.2cc
Air-cooling Mode: Forced Air-cooling
Gasoline Volume: 1.2L /0.32gal
Starting Method: Hand-pull Start
Speed: 15km/h
Steering: Handle Steering
Fuel Consumption: 1-1.2 Hours/ One Tank of Gasoline
Fuel Type: Gasoline
Mounting Type: Engine
Package Size:33.5*29.5*23.5cm/13.2*11.6*9.2inch
Net Weight: 5.8kg/12.8lbs
Gross Weight: 6kg/13.2lbs
Size After Installation: 26*53*113cm/10.24*20.87*44.49inch

Installation Instruction
Installation Warning: Most boats are approved for a maximum power rating, which is shown on the boat's nameplate. Do not configure your boat with an outboard that exceeds this limit.
Installation position: The center of the boat's bottom

Outboard installation instructions:
1. Select the outboard engine with corresponding specification ( HP ) according to the size of the boat, and determine the shaft length of the boat engine by the height of the transom.
2. After hanging the outboard on the transom, lock it with clamping bolts.
3. After the outboard is fixed, you need to pay attention to the water level to be flooded to the best water level to ensure the cooling water pump cools the engine smoothly while making the outboard propulsion system play the best thrust performance.

Package Included
Engine Package:
1* Engine
1* Measuring Cup
1* Chinese Instruction
Other Accessories for Assembly
Bracket Package:
1* Drive Rod
1* Small Bracket
1* Control Lever
1* Big Wrench
1* Metal Stick
1* Screwdriver
3* Small Wrenches
4* Screws
1* English Instruction
