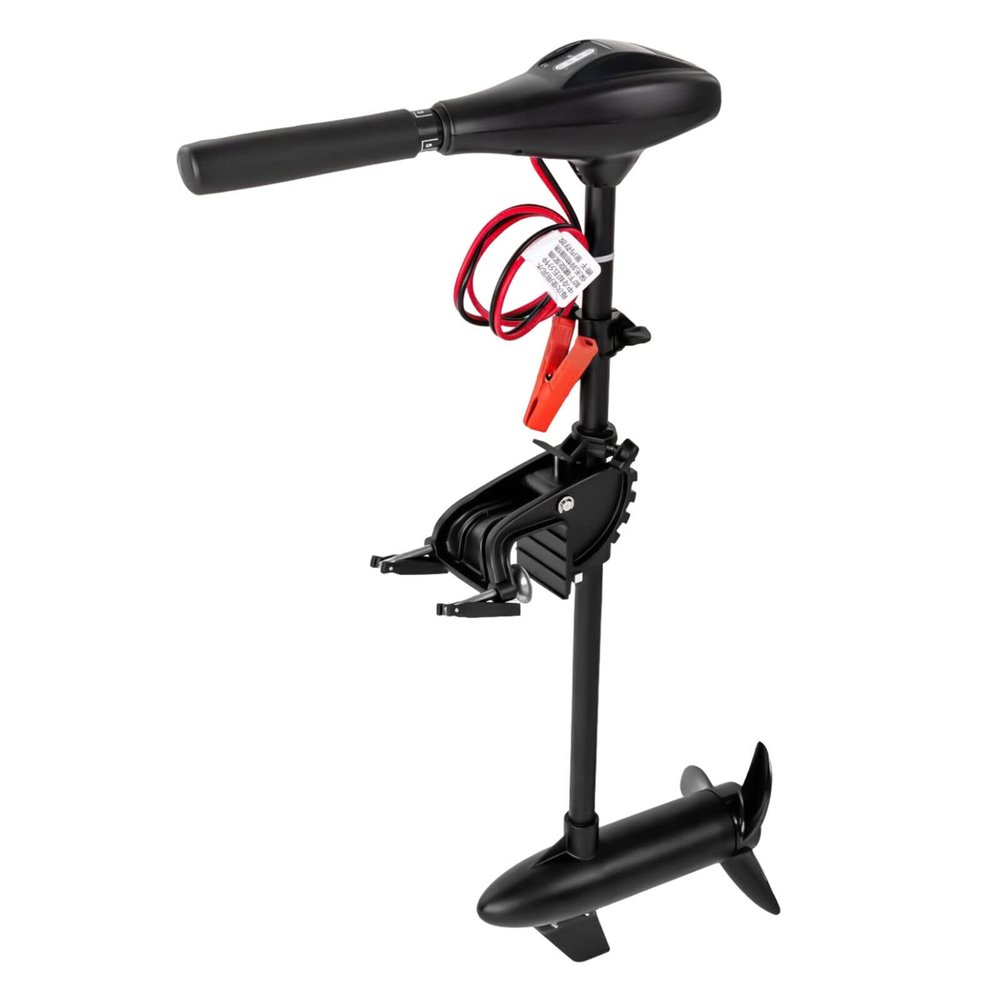

408W Outboard Trolling Motor Fishing Boat Motor Engine 1700rpm 40LBS

Description

• HIGH PERFORMANCE MOTORElectric Trolling Motor, built in high-performance all-copper motor underwater motor system, with high motor efficiency, less heat loss, more power saving, and longer life. Omni-directional rotary joystick, aluminum alloy suspension bracket, 90 degree rotatable bracket, more stable and durable. Anti-winding function when increase the thickening of the propeller. Easy to install, the motor can be mounted on board without any tools.
• HIGH QUALITY MATERIALSAll-copper inner core connecting wire is waterproof. A muffler works for the motor to decrease the noise. Glass fiber composite main rod, light weight, good rigidity, sufficient toughnesssalt resistance and other characteristics. Reinforced nylon material bracket, light weight, firm structure and resistance to breakage.
• MAIN PARAMETERSModel: L40, Rated voltage:12V, Rated power: 408W, Rated current: 34A, Rated speed: 1700RPM, Maximum speed: 3.7 mile/h, Speed control: F5-R2, Motor type: Brush motor, Thrust: 40 lb, Control handle: Telescopic type, Noise: 50dB, Propeller model: 3 leaves / 9'', Certification: CE certification, Maximium rod length: 30'', Motor size: 43'' x 25'' x 6'', Motor weight: 20 lb, Package size: 40'' x 17'' x 7'', Shipping weight: 22 lb.
• ERGONOMIC DESIGNElectric Outboard Trolling Motor, equipped with ergonomic extendable handle, remote control is more convenient. 5 forward and 3 reverse speed regulation puts total control at your fingertips for a smooth and easily controlled ride. Durable all aluminum motor head, and stainless-steel hardware for saltwater use.
• WIDE APPLICATIONThis boat engine is suitable for use in seawater. There are ten levels of angle adjustable motor work scenes. It is suitable for special water environment and has anti-collision settings, which greatly reduces the probability of underwater stones hitting the motor. With huge thrust, a super-strong shaft and speed control, it will put the bait just where it needs to be without the fish ever knowing you're there. Be as one with the silent world with this amazing outboard motor.

Note

The Battery Is Not Included

Please Read the Instruction Before You Use It

Do Not Shift Too Fast, You Need to Switch One by One.

Specifications

Brandsunelexe

Modell40

ThrustKg:30

Speed Control: F5-R2

Motor Type: Brush Motor

Rated Voltage(V):12

Rated Speed(R/Min):1700

Rated Current(a):34

Rated Power(W):408

Control Handle: Telescopic Type

Maximum Speed(Km/H):6

Noise Db:50db

ThrustKg:It Is Recommended to Propel Small Boats Weighing less than 200kg
N.w./G.w.(Kgs)7.8/9.317.2/20.5lb
Pacakge Size: 102*41*16cm (40.16*16.14*6.30inch)

Battery Model Recommendation:

Choose 12v 100a Batteries, the Maximum Power of 3 Hours of Sustainable Operation.

Package Include:

1x Trolling Motor

1x Operation Manual

Cylinder Scoring is a serious damage,which caused by improper use and will cost you a lot of money to repair the motor.
Don't do the following will avoid cylinder Scoring:
1start the motor on bank
2, use the motor when it stop coming out of water

Even if you want test the motor, it should be done in the river!

When there is no water coming out from the motor,please stop using it immediately ,then check the impeller of Water pump or check if the water outlet has been blocked.
