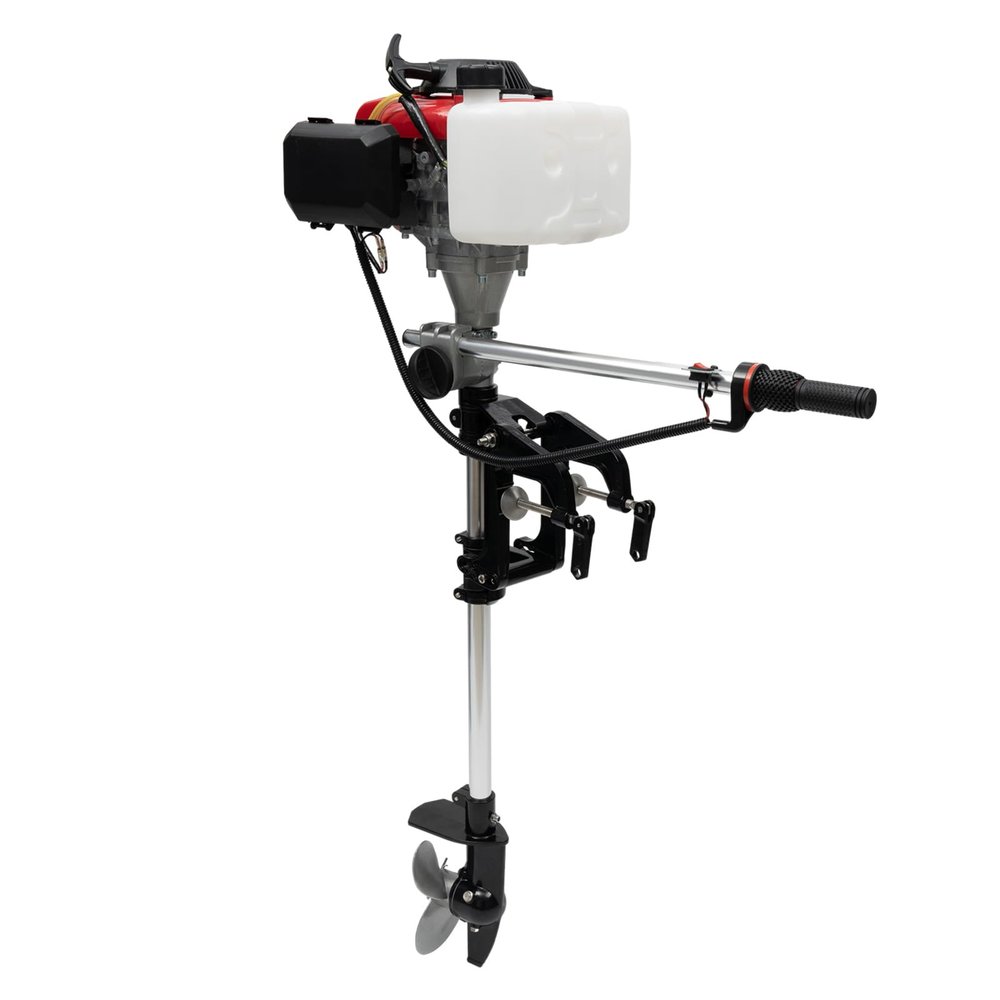

4 Stroke Outboard Motor Fishing Boat Motor Engine With Air Cooling for Inflatable Boat Kayak Canoe Sailboat 52CC Heavy Duty Outboard Motor with Air Cooling CDI System Fit For Small Boats Of 7.5-16.4ft

Description

• Great Durability: This bracket of the outboard engine is made of sturdy and durable aluminum and plastisol. And the engine is covered by a plastic housing, which is waterproof. So it has a long service life, and you can use it with confidence.
• Reliable and Safe: It uses 4-stroke power and air-cooling technology to improve the reliability and safety of the entire machine. It even allows for smooth and safe steering.
• Speed Adjustable: There is a speed adjustment handle on this engine's control lever. The speed can be controlled by rotating the handle.
• Powerful Engine: The engine is a 4-stroke 1.6kw engine, so its power is very strong. Its speed can reach 15km/h. So the superpower engine makes it very time-saving and energy-saving. You can travel quickly through the river with it.
• Convenient Control Lever: This engine has a lever to control the direction within 360 and a handle on the lever to control the speed. It is convenient to control the running speed by adjusting the handle as well as controlling the running direction by adjusting the lever.

Description
Do you like fishing on the river? Do you want to go boating with your family? But are you worried about the manual boating is too tired? With our fishing boat engine, you don't have to worry about this problem. This engine has sufficient power and can drive the boat at a fast speed. The four-stroke 1.6kw fishing boat engine is suitable for all kinds of small boats of 7.5-16.4ft, such as rubber boats, fishing boats, wooden boats, etc.

Details
Clamping Bolt: The fishing boat engine has a clamping bolt on the rod. It clamps the engine firmly on the boat. It is also very easy to install.

Water Baffle: There is a water baffle above the propeller to prevent water from splashing onto the boat. So you don't have to worry about getting yourself wet with the splash.

Anti-slip Throttle Handle: The throttle handle of this product is designed with an irregular shape, which is more non-slip, facilitating your daily use.

Heat Dissipation Housing: There are many small holes in the engine's housing to help dissipate heat and prevent the engine from burning out after prolonged use. These heat dissipation holes extend the life of the engine.

Three-Blade Plastisol Propeller: This bracket uses a three-blade propeller to replace the traditional manual boat propeller. This propeller has a fast speed and allows the boat to be driven quickly.

Application
The fishing boat engine is suitable for all kinds of small boats of 7.5-16.4ft, such as rubber boats, fishing boats, wooden boats, etc. You can use it for fishing on the river, water farming, river rescue, water excursions, flood relief, etc.

Specification
Bracket: Material: Aluminium Rod, Plastisol Propeller
Color: Black and Silver
Drive Rod Length: 56cm/22.05inch
Small Bracket Size: 19*8cm/7.48*3.15inch
Control Lever Length: 53cm/20.87inch
Package Size: 94*19*16cm/37.01*7.48*6.30inch
Net Weight: 4.7kg/10.36lbs
Gross Weight: 4.95kg/10.91lbs
Engine: Color: Orange, Black, Silver
Size: 26*22.5*29cm/10.24*8.86*11.42inch
Engine Model: Four-stroke 144F
Displacement: 53.2cc
Air-cooling Mode: Forced Air-cooling
Gasoline Volume: 1.2L /0.32gal
Starting Method: Hand-pull Start
Speed: 15km/h
Steering: Handle Steering
Fuel Consumption: 1-1.2 Hours/ One Tank of Gasoline
Fuel Type: Gasoline
Mounting Type: Engine
Package Size:33.5*29.5*23.5cm/13.2*11.6*9.2inch
Net Weight: 5.8kg/12.8lbs
Gross Weight: 6kg/13.2lbs
Size After Installation: 26*53*113cm/10.24*20.87*44.49inch

Installation Instruction
Installation Warning: Most boats are approved for a maximum power rating, which is shown on the boat's nameplate. Do not configure your boat with an outboard that exceeds this limit.
Installation position: The center of the boat's bottom

Outboard installation instructions:
1. Select the outboard engine with corresponding specification ( HP ) according to the size of the boat, and determine the shaft length of the boat engine by the height of the transom.
2. After hanging the outboard on the transom, lock it with clamping bolts.
3. After the outboard is fixed, you need to pay attention to the water level to be flooded to the best water level to ensure the cooling water pump cools the engine smoothly while making the outboard propulsion system play the best thrust performance.

Package Included
Engine Package:
1* Engine
1* Measuring Cup
1* Chinese Instruction
Other Accessories for Assembly
Bracket Package:
1* Drive Rod
1* Small Bracket
1* Control Lever
1* Big Wrench
1* Metal Stick
1* Screwdriver
3* Small Wrenches
4* Screws
1* English Instruction

Notes
1. The four-stroke1.6kw fishing boat engine is suitable for all kinds of small boats of 7.5-16.4ft, such as rubber boats, fishing boats, wooden boats, etc.
2. The built-in fuel tank can be filled once for about 2 hours at high speed, and the driving speed is about 10~15km/h. The driving distance is different due to different boat types and load water conditions.
3. Four-stroke fuel uses gasoline over 92#. The oil should be added separately to the internal oil tank.
4. Although this model hasn't a gear set, the throttle can be infinitely adjusted.
5. Before using the new machine, you must first add four-stroke special oil. And, the oil is added to the oil volume cup 200ml. Too much or too little oil will seriously affect the engine.
6. The new machine needs to change the oil once in 6 hours, and then change the oil once in 8 hours.
7. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
