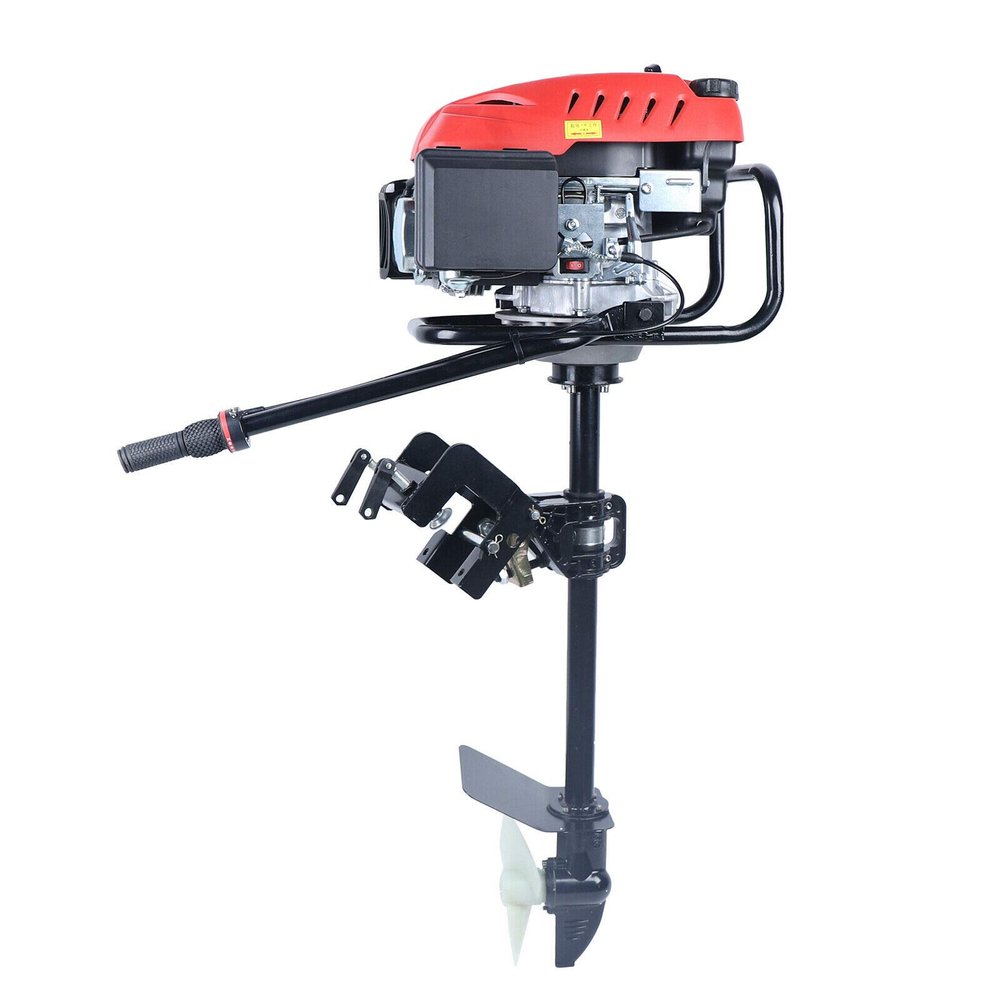

4 Stroke 6HP Outboard Motor, 170 CC Fishing Boat Motor Engine with Air Cooling Single Cylinder Heavy Duty Boat Engine Marine Engine with TAS Ignition System, 3600 r/min,3.2KW

Description

• Premium Material: Fishing boat engine uses high-quality aluminum materials with a plastic painting process, making it impact-resistant, anti-rust, and solid, and can withstand freshwater and saltwater environments.With many heat dissipation holes on the engine and a forced air cooling system, this engine has a great heat dissipation effect and long service life.
• High Efficiency: With a 4-stroke engine, OHV design, 3.2KW strong power output, and 3600r/min high speed, this outboard boat motor has a strong torque output (9.0N.m/2) and is more energy-saving and durable.It can run for about 1 hour when the fuel tank is full. The maximum speed is 15 kilometers per hour, and the minimum speed is 8 kilometers.
• Stepless Speed Regulation: The step-less speed regulation, without the abrupt sense of shifting gears, allows for a smooth and easily controlled ride. The anti-swirl plate can reduce the eddy current generated during the operation of the outboard motor boat engine.
• Exhaust Muffler Method: The muffler design can reduce noise, providing you with a comfortable user experience. The reinforced propeller with two blades is more durable and impact-resistant. Marine motor has a good anti-entanglement effect and can cut off water plants with high-speed rotation.
• Fast Ignition: Using a titanium alloy spark plug and pull start mode, this boat engine motor features fast ignition, energy and fuel saving, and power improvement.With the switch button, pull start mode, and 360 rotatable design, you can easily operate this engine.

Specifications
Model: RV170
Color: Black, Red
Material: Aluminum
Spark Plug Material: Titanium Alloy
Surface Treatment: Plastic Painting
Recommended Uses for Product: For Fishing Boats
Gasoline Engine Type: Single Cylinder Horizontal, Four-stroke, OHV
Recommended Fuel: 92# or Above Gasoline
Recommended Lubricant: 4-stroke Lubricant Oil
Hypoid Gear Oil: SAE90
Starting Mode: Pull Start
Transmission Mode: Spline Transmission
Cooling System: Forced Air Cooling
Ignition System: Capacitance Discharge Type
Power Output Mode: Vertical Shaft Output
Power: 3.2KW
Reduction Ratio: 22:15
Displacement: 170cc
Exhaust Volume: 173.3ml/5.86oz
Bore*Stroke: 70*45mm/2.75*1.77inch
Theoretical Power: 3.2kw/3600r/min
Recommended Power: 2.4kw/3000r/min
Torque: 9.0N.m/2, 500r/min
Fuel Consumption: 395g/kw.h
Spark Plug Gap: 0.7-0.8mm/0.027-0.03inch
Carburetor Idle Speed: 1900100r/min
Valve Clearance (Cold Engine): Intake: 0.150.02mm; Exhaust: 0.200.02mm
Suspension Height: Suspension Point to Propeller 60-70-80cm/23.6-27.56-31.5inch
Oil Tank Capacity: About 1.2L/40.57oz
Applicable Temperature: 80-110/176-230
Applicable Boat Length: 3-7m/9.8-22.9ft
Flat Water Load-bearing Capacity: 1T/2204lbs
Heavy Current Load-bearing Capacity: 750kg/1653lbs
Max. Speed: 15km/h
Min. Speed: 8km/h
Product Size: 39.5*34.8*115cm/15.55*13.7*45.27inch
Net Weight: 26kg/57.3lbs

Package Included
1* Outboard Engine
1* Throttle Main Line
1Set* Tools
1* Manual
