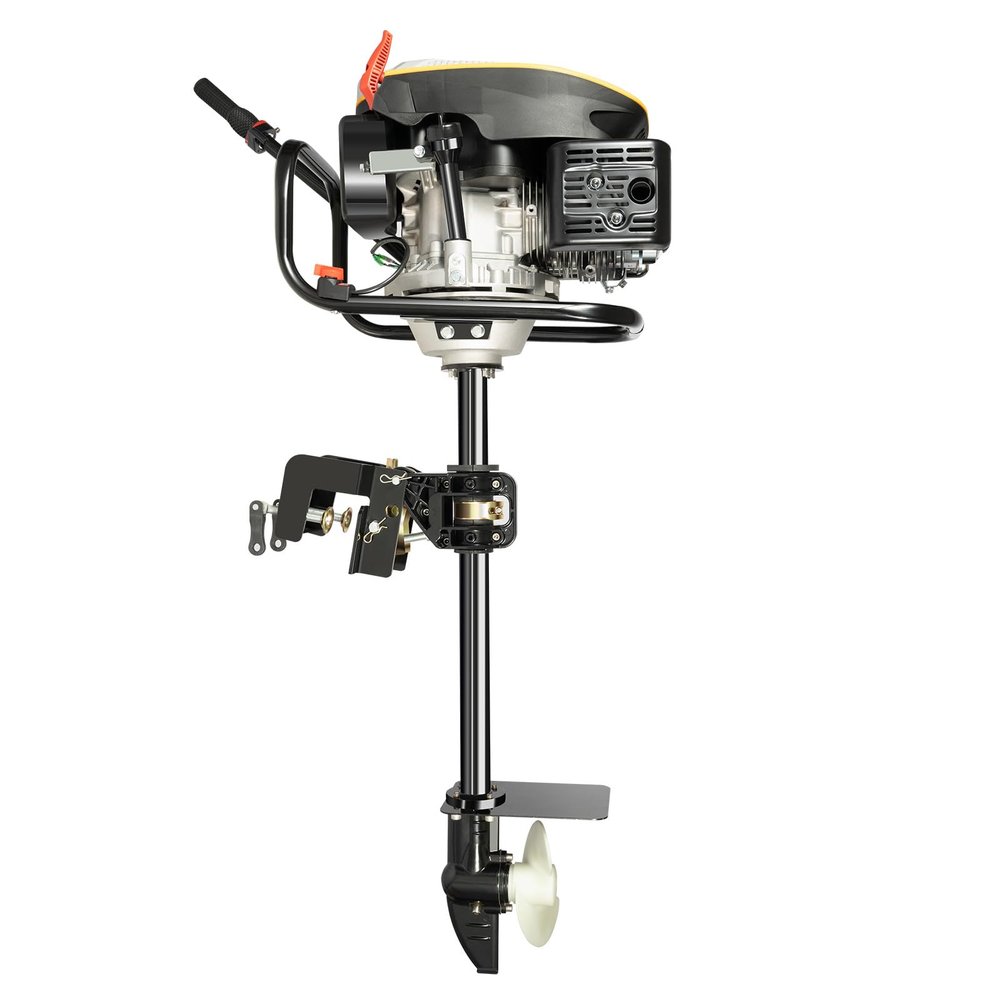

4 Stroke 5.8HP Boat Motor, Outboard Motor Engine, Heavy Duty Gas Powered Trolling Motor with TCI Ignition and 70cm/27.56inch Shaft Length for Inflatable Boat, Jon Boat, Kayak

Description

• 5.8HP Outboard Motor: The 4-stroke OHV engine with 3800r/min can provide a speed of 15km/h to give you a comfortable and labor-saving sailing experience
• Easy to Operate: It adopts a clutch-type gear without shifting gears, by controlling the throttle lever, you can freely control the navigation direction and achieve infinite speed change, or you can cruise at a constant speed
• High Safety: Suspension tilt adjustment pins can be used to adjust the boat's sailing attitude at any time,the anti-swirl plate reduces swirl, the one-button flameout switch can help you to turn it off quickly
• Stable Engine: The dense heat dissipation holes on the casing help the engine dissipate heat quickly and promptly, the air filter helps to filter impurities in the air and reduce the wear and tear to the engine
• Low Fuel Consumption: It uses an advanced TCI ignition system and a high-quality carburetor that allow the fuel to burn well and consume only 0.4 gal/hour

Specification
Material: Aluminum Alloy, Nylon, Rubber
Engine Type: 4-stroke, OHV
Displacement: 225CC
Compression Ratio: 8.4:1
Cylinder: 1
Max Output: 4.3kw
Rotation: 3800r/min
Max Speed: 15km/h/9.32miles/h
Idle Speed: 1800+150rpm
Net Torque: 12.5nm / 7.7 Lbfft, 2500rpm
Gear: Clutch (No Shift Required)
Ignition System: TCI
Cooling System: Forced Air-cooling
Starting System: Manual Recoil
Power Transmission Mode: Gear Transmission Mode
Recommended Fuel: Above 92# Unleaded Gasoline
Engine Oil: SAE10W-30 Four-stroke Oil (Approximately 0.6L Added to the Ccrankcase, Between the Upper and Lower Lines of the Dipstick)
Trim and Tilt System: Manual Tilt
Fuel Consumption: 1.5L/0.4Gal/H
Fuel Tank Capacity: 1-1.5L/0.26-0.4Gal
Gear Oil Capacity: 0.1L/0.03Gal
Bore Stroke: 7*5.8cm/2.76*2.28inch
Standard Shaft Length: 70cm/27.56inch
Adaptive Transom Plate Height: 30-50cm/11.81-19.69inch
Propeller Diameter: 19cm/7.48inch
Joystick Length: 59cm/23.22inch
Oil Filling Pipe Length: 14cm/5.51inch
Product Lower Part Length: 76cm/30inch
Product Total Length: 110cm/43.31inch
Gross Weight: 32.3kg/71.21lbs
Net Weight: 25.6kg/56.44lbs
Engine Size: 46*37*30cm/18.11*14.57*11.81inch
Package Size: 120.5*52.5*40.5cm/47.44*20.67*15.94inch

Package Included
1* Outboard Engine
2* English Manuals
All Accessories for Installation

Notes
1.Firstly add 4-stroke oil according to the scale between the upper and lower lines of the scale (please do not start the motor without engine oil).
2.After the running-in period, the oil in the crankcase needs to be replaced, and the second replacement time is about 30 hours. Replace it every 50 hours thereafter.
3.Please note that the propeller gearbox requires a gear oil change every 50 hours.
