18HP Outboard Boat Motor,2 Stroke Fishing Boat Engine Marine Engine Outboard Motor Long Shaft w/CDI Water Cooling for Heavy Duty Fishing Boat Kayak Engine 246CC

Description

• Flexible Steering: Forward, neutral and reverse gears, and a 360-degree steering function allow you to flexibly control the direction of the ship.
• Easy Speed Regulation: Stepless speed change and constant speed cruise function make it easy for you to adjust the running speed and stable navigation at a constant speed to bring you a more comfortable user experience
• Easy to Operate: The manual start function allows you to operate easily by pulling the start rope and opening the speed switch on the handle. Its long non-slip handle(20 inches in length) is easy to grasp. The red stop button allows you to stop the engine by pressing it for a few seconds.
• Note:Our machines are all without gear oil versions. Please add gear oil to the gears before using the motor and replace gear oil after the run-in period. Our outboard motor doesn't with oil of gear, please prepare it by yourself.
• Application:This kind of outboard motor is suitable for small ships of different materials (the length of the ship is greater than 3 meters, the net weight of the ship is greater than 60kg, the load of the ship is less than 1000kg), such as rubber boats, iron boats, plastic boats, glass fiber boats, wooden boats, etc. Widely used in fishery, aquaculture, outdoor exploration and other fields.
• Gear Oil Filling Method:There is a screw on the gearbox, unscrew the screw to add gear oil. Gear oil is not filled before each machine leaves the factory, so please fill gear oil when using for the first time. After that, add according to personal use, and check every ten hours.

Specification
Material: Aluminum Alloy
Model: 18HP Horsepower Long Axis
Displacement: 246CC
Gear Ratio: 2.08 (27:13)
Number of Cylinders: 2
Speed: 4500-5500RPM
Gear: F-N-R
Refueling Method: 92 Unleaded Gasoline is Recommended
Oil Tank Capacity: 24L/6.34gal
Load-bearing Capacity: 500-1000kg/1102-2204lbs
Ignition System: CDI
Cooling System: Water Cooling
Control System: Tiller Control
Start System: Manual Start
Propeller Specification: 23.5cm/9.25in (Length) * 20.3cm/8in (Diameter)
Suitable Stern Plate Height: 45cm-55cm/17.7*21.7in
Cylinder Diameter * Stroke: 56mm/2.2in*50mm/2in
Recommended Engine Oil: 2 Stroke Engine Oil
Mixing Ratio: Fuel: Oil = 50:1
Trim and Tilt System: Manual Tilt
Net Weight: 41kg/90.38lbs
Gross Weight: 53kg/116.84lbs
Package Size: 133*71*38.5cm/52.4*28*15.2in
Product Size: 87.3*33.2*105.3cm/34.4*13.1*41.5in

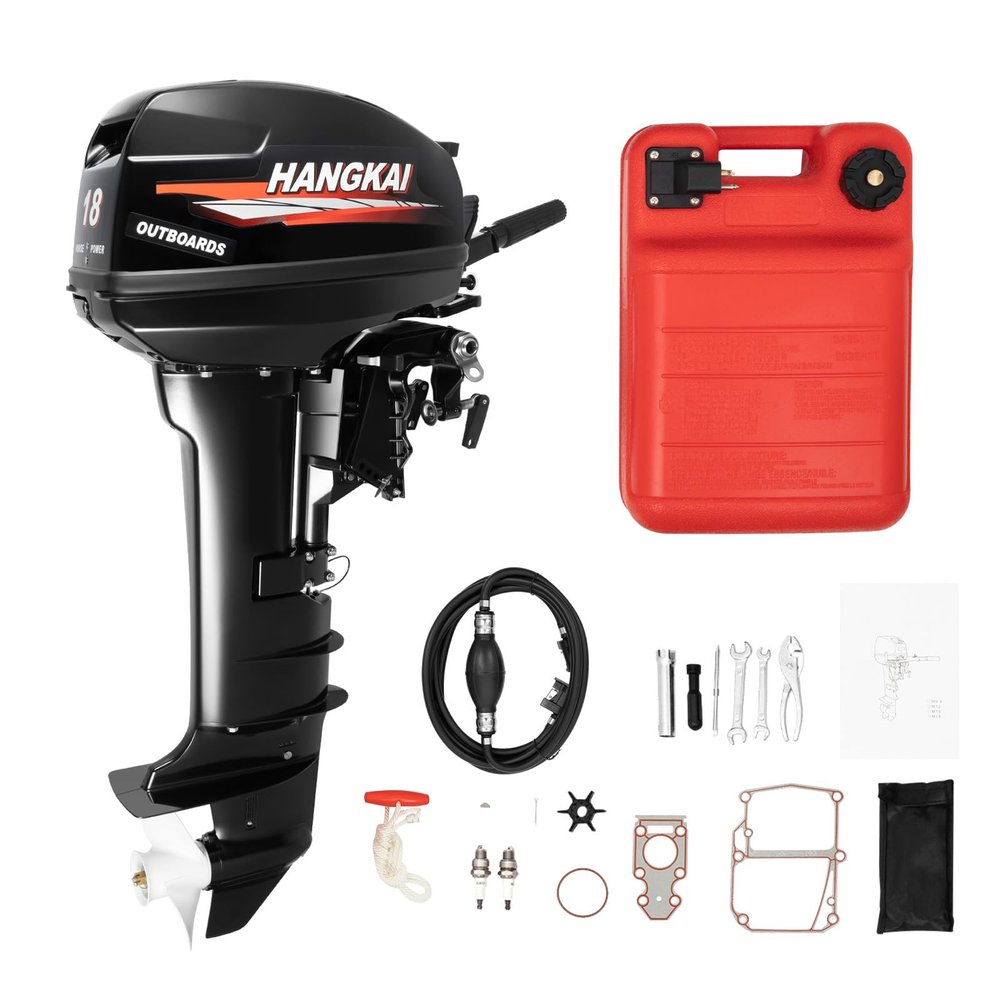

Package Included
1x Outboard Motor
1x Flameout Rope
1x Oil Pipe
1x Sealing Ring
1x Paper Pad
1x Spark Plug
1x Start Rope
1x Water Pump Impeller
1x Cotter Pin
1x Fuel Tank
1x English Manual
Other Tools

Notes
1. The two-stroke outboard must use a mixture of No. 92 gasoline and two-stroke engine oil.
2. The volume ratio of gasoline and oil during the running-in period of the new machine is 25:1.
3. After the running-in period, the volume ratio of gasoline and oil is 50:1.
4. Special attention: gasoline and engine oil must be pre-mixed and stirred evenly, and then poured into the fuel tank.
5. The outboard motor must be started in water, do not start the engine on shore.
6. Loosen the vent screw on the fuel tank cover counterclockwise when starting.
7. When the outboard motor is started, the emergency flameout rope should be inserted, and the other end should be placed on the wrist or belt.
8. The running-in period is about 10 hours or a month, and during the running-in period, do not drive with a high accelerator.
9. Replace the gear oil after the running-in period, and the second replacement time is after 100 hours or about six months.
