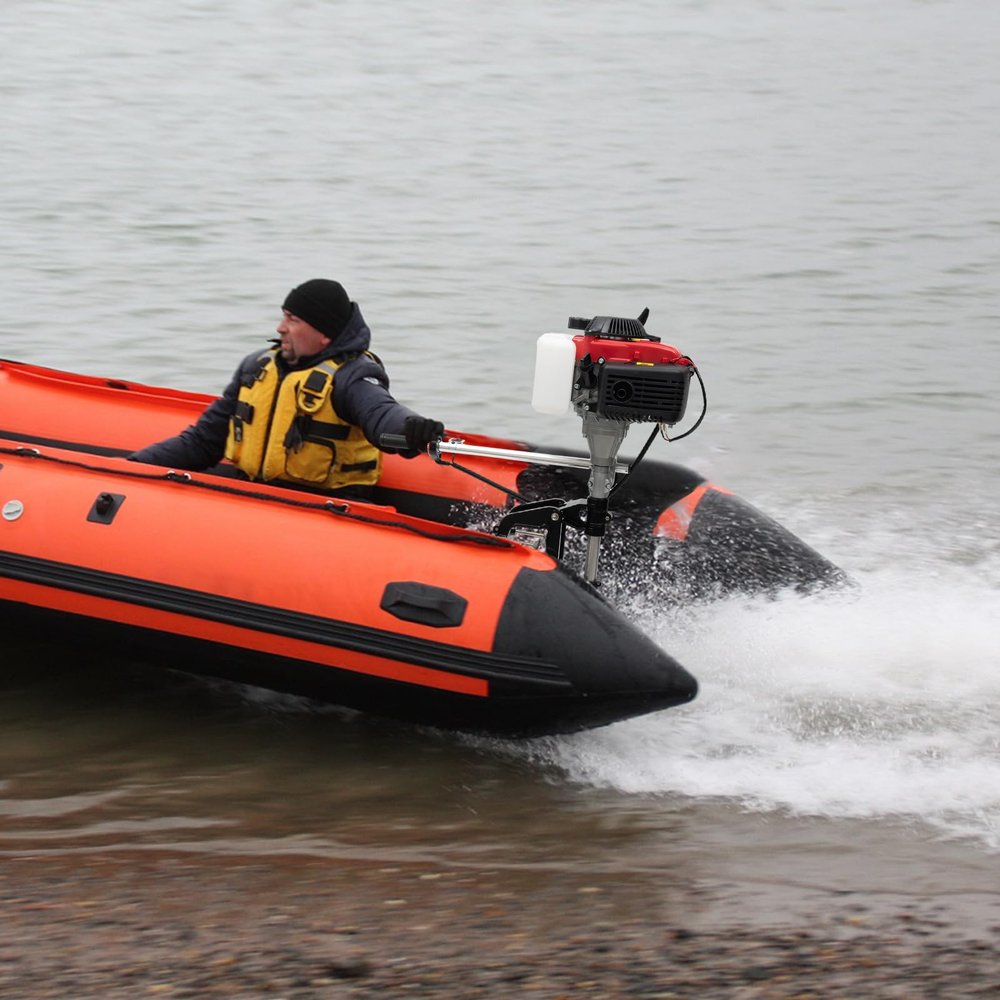

1.6KW Outboard Motor 53.2CC 4-Stroke Air-Cooling Marine Propeller Fishing Boat Outboard Motor Hand Pull Start Outboard Engine for Kayak, Yacht, Inflatable Boat, Rubber Boat

Description

• Specification- Power Type: 4-stroke 144F forced Air-cooling gasoline engine; Displacement: 53.2cc; Starting Method: Hand-pull Start; Speed: 15km/h;Gasoline Volume: 1.2L /0.32gal; Fuel Consumption: 1-1.2 Hours/ One Tank of Gasoline
• Reliable & Safe- It uses 4-stroke power and air-cooling technology to improve the reliability and safety of the entire machine. It even allows for smooth and safe steering. You can rotate the adjustment handle on the control lever to control speed.
• Powerful Engine- This engine is a 4-stroke 1.6kw engine, so its power is very strong. Its speed can reach 15km/h. So the superpower engine makes it very time-saving and energy-saving. You can travel quickly through the river with it.
• Great Durability- The bracket of this outboard engine is made of sturdy and durable aluminum and plastisol. And the engine is covered by a plastic housing, which is waterproof. So it has a long service life, and you can use it with confidence.
• Convenient Control Lever- This engine has a lever to control the direction within 360 and a speed adjustment handle. It is convenient to control the running speed by adjusting the handle and control the running direction by adjusting the lever.

Installation Instruction:
Installation position: The center of the boat's bottom

1.Select the outboard engine with corresponding specification ( HP ) according to the size of the boat, and determine the shaft length of the boat engine by the height of the transom. Do not configure your boat with an outboard that exceeds its limit.

2.After hanging the outboard on the transom, lock it with clamping bolts.

3.After the outboard is fixed, you need to pay attention to the water level to be flooded to the best water level to ensure the cooling water pump cools the engine smoothly while making the outboard propulsion system play the best thrust performance.

Package List

1* Engine

1* Measuring Cup

1* Chinese Instruction

Other Accessories for Assembly

1* Drive Rod

1* Small Bracket

1* Control Lever

1* Big Wrench

1* Metal Stick

1* Screwdriver

3* Small Wrenches

4* Screws

1* English Instruction

Notes

1.The built-in fuel tank can be filled once for about 2 hours at high speed, and the driving speed is about 10~15km/h. The driving distance is different due to different boat types and load water conditions.

2.Four-stroke fuel uses gasoline over 92#. The oil should be added separately to the internal oil tank.

3.Although this model hasn't a gear set, the throttle can be infinitely adjusted.

4.Before using the new machine, you must first add four-stroke special oil. And, the oil is added to the oil volume cup 250ML/0.05gal. Too much or too little oil will seriously affect the engine.

5.The new machine needs to change the oil once in 6 hours, and then change the oil once in 8 hours.
