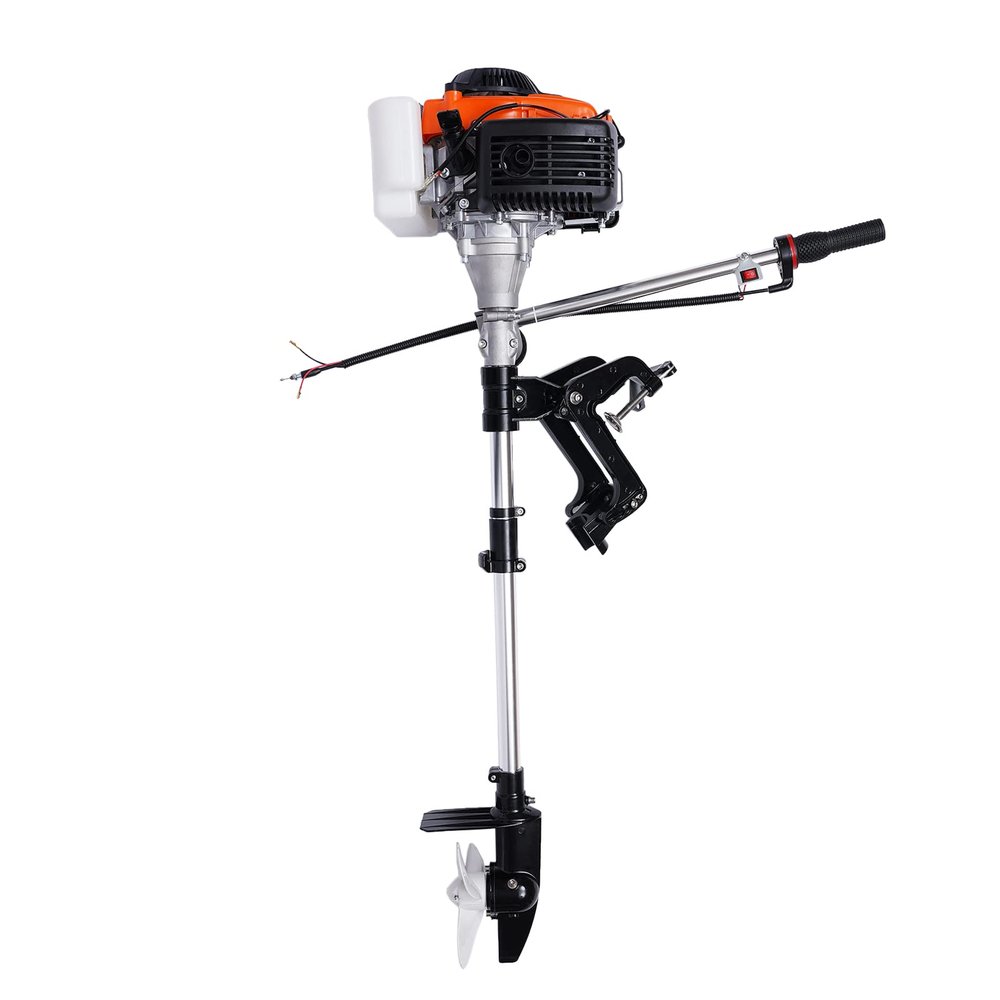

1.6 KW 4 Stroke Outboard Motor Boat Engine Black Heavy Duty Outboard Motor with Air Cooling System Outboard Motor Gas Boat Fishing Boat Engine for Aquaculture Fishing Outdoor Adventure

Description

• [SPECIFICATIONS] Engine: Size: 10.24*8.86*11.42''. Model: 4-stroke 144F. Displacement: 53.2cc. Air-cooling Mode: Forced Air-cooling. Gasoline Volume: 1.2L . Starting Method: Hand-pull Start. Speed: 15km/h. Steering: Handle Steering. Fuel Consumption: 1-1.2 Hours/ One Tank of Gasoline. Net Weight:12.8lbs. Gross Weight:13.2lbs. Size After Installation: 10.24*20.87*44.49''. Bracket: Drive Rod Length: 22.05''. Small Bracket Size: 7.48*3.15''. Control Lever Length: 20.87''. Net Weight: 10.36lbs.
• [EASY OPERATION] This outboard engine's control lever has a speed adjustment handle that allows you to easily control the speed. It also has a 360-degree steering function, and the running direction can be controlled by adjusting the lever, allowing you to easily control the steering of the boat, making it more convenient to use. This outboard is equipped with a 1.2L built-in fuel tank, which can make the boat run at high speed for about 2 hours at a time, excellent working time.
• [PREMIUM MATERIAL] This premium outboard motor is constructed of durable steel and aluminum for excellent corrosion resistance and longer life. The engine is powerful and the speed can reach 15km/h. It also comes with standard premium cast aluminium propellers so it can be used for extended periods of time in both fresh and salt water. The outboard motor is designed with an excellent air cooling system, which can dissipate heat in time and prolong its service life.
• [WIDE APPLICATION] This outboard is not only suitable for all kinds of small boats of 7.5-16.4 feet, such as inflatable boats, fishing boats, inflatable boats, sailboats, small yachts and small water vehicles, canoes and aluminum fishing boats. It is also suitable for fishing, aquaculture, water sports, water tourism, river rescue, outdoor adventure and other purposes.
• [QUALITY ASSURANCE] We have strict quality control system, our products are put into the market after rigorous testing. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

Notes
1.Suitable for all kinds of small boats of 7.5-16.4ft
2. The built-in fuel tank can be filled once for about 2 hours at high speed, and the driving speed is about 10~15km/h. The driving distance is different due to different boat types and load water conditions.
3. Four-stroke fuel uses gasoline over 92#. The oil should be added separately to the internal oil tank.
4. Although this model hasn't a gear set, the throttle can be infinitely adjusted.
5. Before using the new machine, you must first add four-stroke special oil. And, the oil is added to the oil volume cup 250ML/0.07gal. Too much or too little oil will seriously affect the engine.
6. The new machine needs to change the oil once in 6 hours, and then change the oil once in 8 hours.
Installation Warning:
Most boats are approved for a maximum power rating, which is shown on the boat's nameplate. Do not configure your boat with an outboard that exceeds this limit.
Installation position: The center of the boat's bottom
Outboard installation instructions:
1. Select the outboard engine with corresponding specification ( HP ) according to the size of the boat, and determine the shaft length of the boat engine by the height of the transom.
2. After hanging the outboard on the transom, lock it with clamping bolts.
3. After the outboard is fixed, you need to pay attention to the water level to be flooded to the best water level to ensure the cooling water pump cools the engine smoothly while making the outboard propulsion system play the best thrust performance.

Package Included
1* Engine
1* Measuring Cup
1* English Instruction
1* Drive Rod
1* Small Bracket
1* Control Lever
1* Big Wrench
1* Metal Stick
1* Screwdriver
3* Small Wrenches
4* Screws
