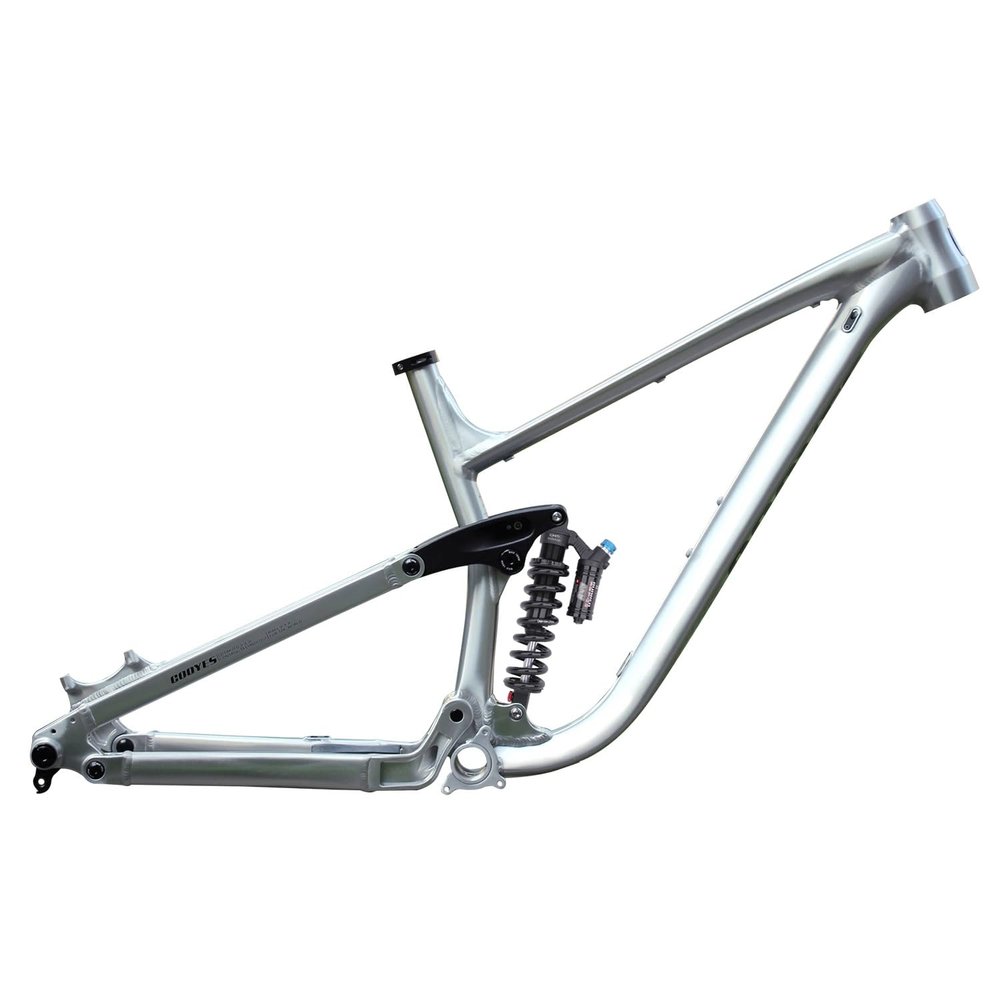

15.5"/17"/18" Full Suspension Frame 27.5er 29er Mountain Bikes Boost Frame 12*148mm Thru Axle Enduro/DH/AM Aluminum Alloy Disc Brake Frame Travel 160mm With Shock Absorber(Silver,27.5*18in)

Description

• Full suspension bike frame: 15.5"/17"/18" Enduro Mountain bikes frame, DH/AM soft tail frame, travel 160mm, bike forks travel 160mm, 12*148mm Boost Thru Axle Frame, can fit outer tire max width 27.5*2.8", 29*2.5".
• Disc brake frame: PM75mm A-pillar disc brake, Directly mounted with 180mm disc brake rotor. For Seatpost 30.9mm, Seatpost Clamp 34.9mm, 44*55mm tapered headsets, BSA BB73mm, 210*55mm/216*63mm Shock Absorber, bushing 32-22mm.
• Rear Shock Absorber: 210mm Oil Spring Shock Absorber. Eye to Eye:210mm 61mm Travel (8.272.4in). Damper shaftHard chromed shock 12 mm ( 0.47 inch ) shaft, Spring: Coil Spring, Intended use: AM FR DH. Weight: 929g=2.05lbs, Travel: 542mm, Spring Rate: 550lbs. Adjustments: Rebound / Compression / Preload / Adjust High Pressure/Big impact.
• Aluminum Alloy frame: Aluminum alloy Material, Lightweight aluminum alloy has good welding performance, so that the frame has a high strength and not easy to break characteristics.
• Package: Includes frame, 210mm Oil Spring Shock Absorber, Rear Thru axle lever, headset, Seatpost Clamp, Derailleur Hanger and Cable Clip. Perfect gift for bike lovers, can be assembled with your friends. If you have any questions about the bike frame, please contact me and I will be happy to help you.

15.5/17/18inch Full suspension mountain bike frame, 27.5/29ER Soft tail Disc brake bike frame, 12*148mm BOOST thru-axle frame, Perfect gift for bike lovers, can be assembled with your friends.

Product name: Aluminum Alloy mountain Bikes frame
Frame higth15.5",17",18"
For wheel27.5''/29" wheels
Maximum tire width: 29*2.5"(27.5*2.8")
Level: DH/AM

Material: Aluminum Alloy
Weight: about 3750g
Color: Silver, Black, White, Green, White-Gray

Specifications:
Headset: 44*55mm
Seatpost: 30.9mm
Seatpost Clamp: 34.9mm
Rear wheel travel: 160mm
bike forks travel: 160mmSupports Straight Tube or Tapered Tube forks
Boost thru-axle: 12*148mm( 142mm thru-axle can be installed with adapter )
Shock absorber: 210*55mm (oil spring or air pressure); 216*63mm(air pressure)
Bushing: 32-22mm
Chainring: 30/32/34T(Max 34T)
Bottom Brackets: BSA BB73mm
Brake: A-pillar disc brake, PM 75mm, Directly mounted with 180mm disc brake rotor, 203mm requires an adapter seat.
Cable : external routing ; internal routingInternal and external routing are available

Rear Shock Absorber:
210mm Oil Spring Shock Absorber
Eye to Eye: 210mm 61mm Travel (8.272.4in)
Damper shaftHard chromed shock 12 mm ( 0.47 inch ) shaft
Spring: Coil Spring
Intended use: AM FR DH
Travel: 542mm
Spring Rate: 550lbs
Material: 7075 Aluminum Alloy
Weight: 929g=2.05lbs
Adjustments: Rebound / Compression / Preload / Adjust High Pressure/Big impact

Package:
Frame + 210mm Oil Spring Shock Absorber + Rear Thru axle lever + headset + Seatpost Clamp + Derailleur Hanger + Cable Clip

NOTES: Please check if the bike frame size is correct before purchasing.
Service: If you have any product and service questions, please contact us and we will respond to you within 24 hours.
