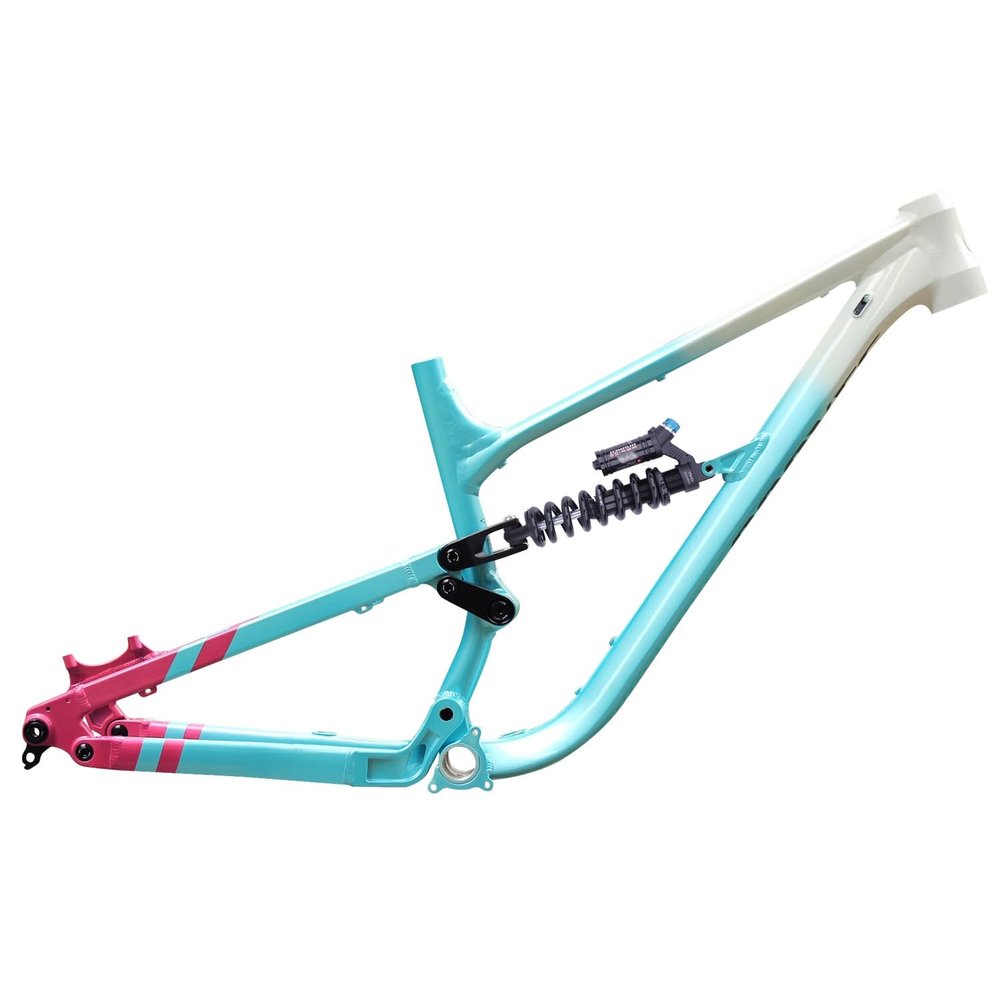

15/16.5/18in Full Suspension Bike Frame 27.5/29er Mountain Bike Disc Brake Frame DH/AM Aluminum Alloy Softail Frame 160mm Travel 12148mm Boost Thru-Axle With Rear Shock Absorber(Blue-white,29*15in)

Description

• Mountain Bike Soft Tail Frame: Aluminium alloy full suspension frame 27.5er 29er enduro mountain bike frame 15"/16.5''/18'',travel 160mm.
• Specification: For 44*55mm headset, BSA73mm, seat post 30.9mm, seatpost clamp 34.9mm. A-pillar disc brake PM 75mm, 12*148mm boost thru axle, max for 27.5*2.8''/29*2.5" tires.
• Rear Shock Absorber: 220mm Oil Spring Shock Absorber. Eye to Eye: 220mm 66mm Travel (8.662.6in). Damper shaftHard chromed shock 12 mm ( 0.47 inch ) shaft, Spring: Coil Spring, Intended use: AM FR DH. Weight: 944g=2.08lbs, Travel: 592mm, Spring Rate: 550lbs. Adjustments: Rebound / Compression / Preload / Adjust High Pressure/Big impact.
• Full internal routing frame: thickened rear fork, strength and toughness,fit for enduro/Downhill/AM/Forest Road.
• Package: The frame weight about 3720gpackage includes frame220mm Oil Spring Shock Absorber, thru axle rod, headset, seatpost clamp, tail hook, Cable Clip.

15/16.5/18inch Full suspension mountain bike frame, 27.5/29ER Soft tail Disc brake bike frame, 12*148mm BOOST thru-axle frame, Perfect gift for bike lovers, can be assembled with your friends.

Product name: Aluminum Alloy mountain Bikes frame
Frame higth15",16.5",18"
For wheel27.5''/29" wheels
Maximum tire width: 29*2.5" (27.5*2.8")
Level: DH/AM

Material: Aluminum Alloy
Weight: about 3720g
Color: Blue-white, Pink, Matte Black, Green, Silver, White

Specifications:
Headset: 44*55mm
Seatpost: 30.9mm
Seatpost Clamp: 34.9mm
Rear wheel travel: 160mm
bike forks travel: 160mmSupports Straight Tube or Tapered Tube forks
Boost thru-axle: 12*148mm ( 142mm thru-axle can be installed with adapter )
Shock absorber: Supports 220*65mm/222*70mm Shock absorber
Bushing: 22-22mm
Chainring: 30/32/34T(Max 34T)
Bottom Brackets: BSA BB73mm
Brake: A-pillar disc brake, PM 75mm, Directly mounted with 180mm disc brake rotor, 203mm requires an adapter seat.
Cable : external routing ; internal routingInternal and external routing are available

Rear Shock Absorber:
220mm Oil Spring Shock Absorber
Eye to Eye: 220mm 66mm Travel (8.662.6in)
Damper shaftHard chromed shock 12 mm ( 0.47 inch ) shaft
Spring: Coil Spring
Intended use: AM FR DH
Travel: 592mm
Spring Rate: 550lbs
Material: 7075 Aluminum Alloy
Weight: 944g=2.08lbs
Adjustments: Rebound / Compression / Preload / Adjust High Pressure/Big impact.

Package:
Frame + 220mm Oil Spring Shock Absorber + Rear Thru axle lever + headset + Seatpost Clamp + Tail hook + Cable Clip

NOTES: Please check if the bike frame size is correct before purchasing.
