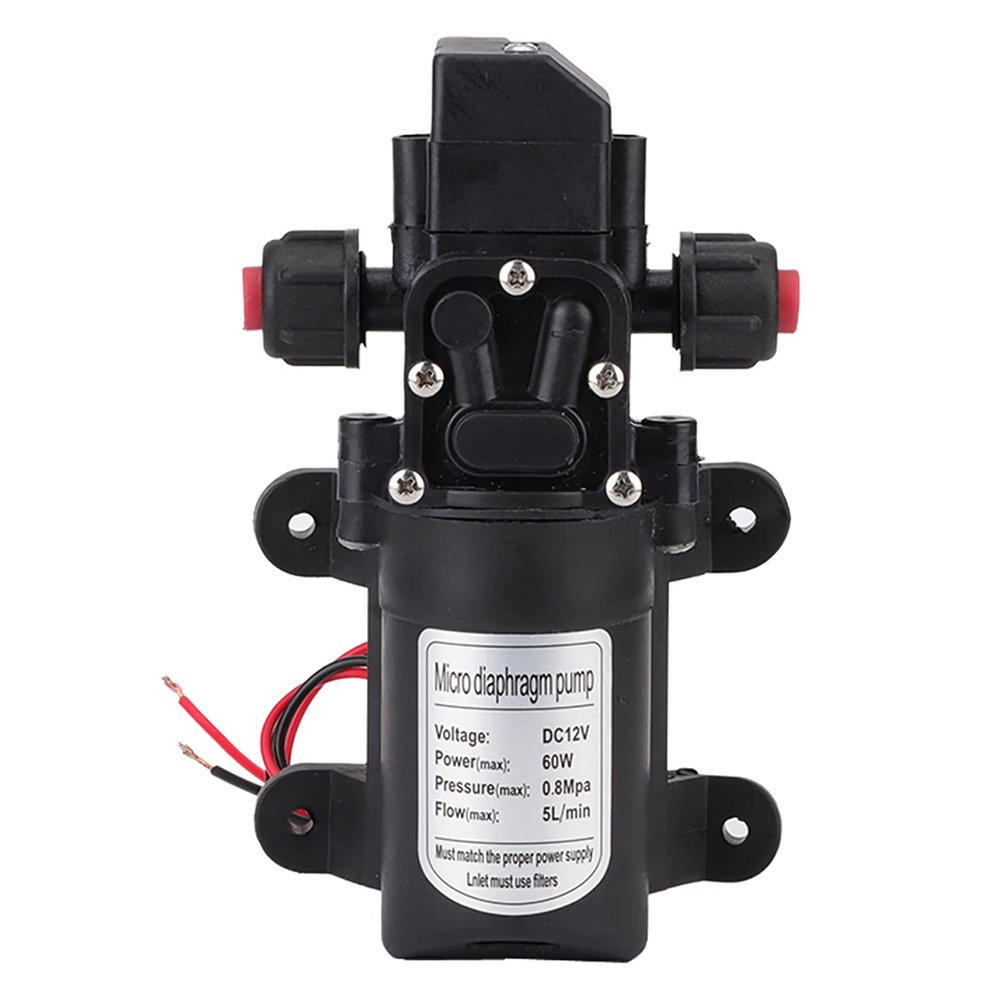

12V DC 60W Water Pump with Adjustable Pressure Switch 5L/min 116psi (0.8MPA) Self Priming Fresh Water Pump for RV, Camper, Marine Boat, Lawn Watering(9.9x16.7cm / 3.9x 6.6in)

Description

• Product specificationsSelf-priming fresh water pump Voltage: DC12V, Power: 60W, Flow rate: 5 liters / minute 5 liters / minute,Maximum working pressure: 116psi (0.8MPA), suction range: 1.5 meters, pump head: 50 meters, dimensions about 9.9x16.7 cm/3.9x6.6 inches
• Built-in pressure switchThe pump has a built-in pressure switch, it will automatically turn on or off when you turn on or off the faucet or nozzle, and cut off the water automatically when the outlet pressure is high enough. It will run again when the pressure drops
• Suitable forSelf-priming water pumps can be used in applications where there is a need for energy saving and frequent switching, applied to general industrial equipment, lawn and garden, vehicle modification, vehicle washing, etc
• Easy to installThe water inlet and outlet ports of the pump are connected by silicone PE or PU pipes, the mounting feet are made of rubber instead of hard plastic, which has quite a good vibration isolation effect, the direction with a small arrow on the pump is the outlet, and the wires are not divided into positive and negative poles, which makes the installation simple
• Purchase notePlease pay attention to the product specifications before purchasing to avoid purchasing the wrong product

Specifications: Volts: DC12V Power: 60W Flow Rate: 5L/min Maximum Working Pressure: 116psi (0.8MPA) Suction Lift: 1.5 meters Pump Lift: 50 meters Size: Approx. 9.9 x 16.7cm / 3.9" x 6.6" Line Length: Approx. 29cm / 11.4" Interface Outer Diameter: Approx. 10.8mm / 0.4" Interface Inner Diameter: Approx. 6mm / 0.2" Package Weight: 688g
Instructions: 1. The direction with a small on the water pump is the water outlet. 2. The wires are not divided into positive and negative poles. 3. The pump can be placed in any direction.
Package Included: 1 x Self Priming Pump

Note: 1. Do not soak in water. 2. The pressure adjustment screw cannot be adjusted at will. The pressure has been adjusted before leaving the factory. The stop pressure can be finely adjusted (the middle screw of the black plastic cover on the top of the pump, clockwise to increase the stop pressure, counterclockwise to reduce the stop pressure) 3. Impurities cannot be pumped in, otherwise the pump will easily be blocked and the pressure will drop to no water. 4. The shorter the inlet pipe, the better, the longest should not exceed 1.5 meters, and the outlet pipe can be as long as possible (within Yangcheng range). Use a tube with an inner diameter of 8mm and an outer diameter of about 12mm 5. Do not pump strong acid and strong alkaline liquids.
Common faults and troubleshooting: 1. When the pump is not operating, check whether the two wires behind the motor are loose. 2. When the diaphragm pump is not used for a long time, the pump head will have no suction. Just drop a few drops of water into the pump port and run for a few minutes, and it can be used normally when the sound changes.
